Back to Bike FinderYears: 2011
2011ATV

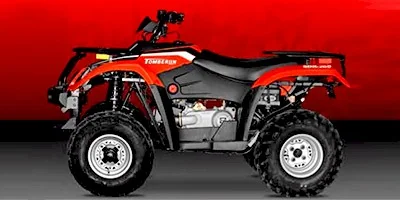

Tomberlin SDX-200 T-14 ATV
Key specifications
Engine
177 cc
Torque
9 Nm
Weight
236 kg
Fuel type
petrol
Front brakes
Single disc. Hydraulic
Rear brakes
Single disc. Hydraulic
Technical details
Source specification data
- Make
- Tomberlin
- Model
- SDX-200 T-14 ATV
- Category
- ATV
- Light
- Dual front lights
- Starter
- Electric
- Color Options
- Red, yellow
- Torque
- 8.95 Nm (0.9 kgf-m or 6.6 ft.lbs) @ 5500 RPM
- Ignition
- CDI
- Fuel System
- Carburettor. ENI
- Bore X Stroke
- 82.5 x 57.8 mm (3.2 x 2.3 inches)
- Compression
- 8.8:1
- Displacement
- 177.30 ccm (10.82 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Forced Pressure Wet Sump
- Transmission Type Final Drive
- Belt
- Dry Weight
- 236.3 kg (521.0 pounds)
- Overall Width
- 1,120 mm (44.1 inches)
- Overall Height
- 1,168 mm (46.0 inches)
- Overall Length
- 2,014 mm (79.3 inches)
- Rear Tyre
- 22/10-10
- Front Tyre
- 22/7-12
- Rear Brakes
- Single disc. Hydraulic
- Front Brakes
- Single disc. Hydraulic
- Rear Suspension
- Swing Arm, coil over, adjustable shocks
- Front Suspension
- McPherson Strut
Available colors
Redyellow
