Back to Bike FinderYears: 2011
2011ATV

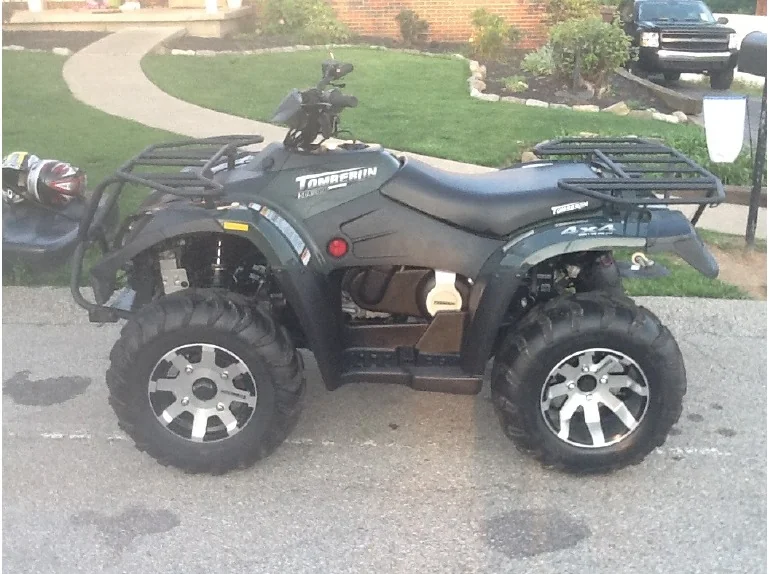

Tomberlin SDX-300 4x4 ATV
Key specifications
Engine
276 cc
Torque
22 Nm
Weight
295 kg
Fuel type
petrol
Front brakes
Single disc. Hydraulic
Rear brakes
Single disc. Hydraulic
Technical details
Source specification data
- Make
- Tomberlin
- Model
- SDX-300 4x4 ATV
- Category
- ATV
- Light
- Dual front lights
- Starter
- Electric
- Color Options
- Red, grey
- Torque
- 22.37 Nm (2.3 kgf-m or 16.5 ft.lbs) @ 5500 RPM
- Ignition
- CDI
- Driveline
- 4x4
- Fuel System
- Carburettor. Keihin
- Bore X Stroke
- 72.5 x 66.8 mm (2.9 x 2.6 inches)
- Compression
- 9.5:1
- Displacement
- 275.70 ccm (16.82 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Belt
- Dry Weight
- 295.0 kg (650.3 pounds)
- Overall Width
- 1,140 mm (44.9 inches)
- Overall Height
- 1,194 mm (47.0 inches)
- Overall Length
- 2,075 mm (81.7 inches)
- Rear Tyre
- 24/11-12
- Frame Type
- Steel
- Front Tyre
- 24/8-12
- Rear Brakes
- Single disc. Hydraulic
- Front Brakes
- Single disc. Hydraulic
- Rear Suspension
- Swing Arm
- Front Suspension
- McPherson Strut
Available colors
Redgrey
