Back to Bike FinderYears: 2020
2020Classic

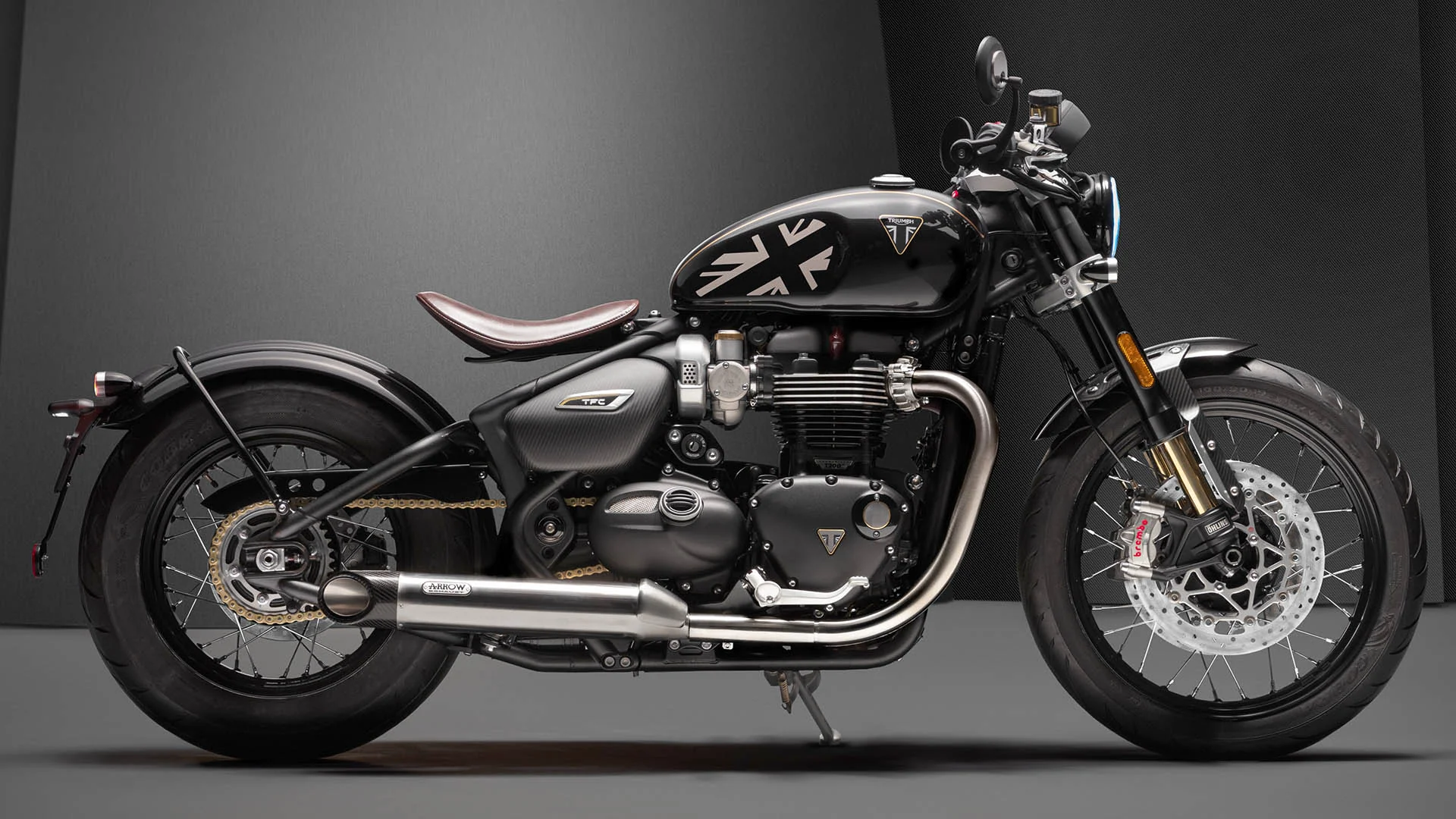

Triumph Bobber TFC
Key specifications
Engine
1200 cc
Power
86 HP
Torque
110 Nm
Weight
228 kg
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
6-speed
Seat height
27 mm
Front brakes
Single disc. ABS. Brembo 2-piston floating caliper
Rear brakes
Single disc. ABS. Nissin single piston floating caliper.
Technical details
Source specification data
- Make
- Triumph
- Model
- Bobber TFC
- Category
- Classic
- Starter
- Electric
- Instruments
- LCD multi-functional instrument pack with analog speedometer, odometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clock, 2x trip, average and current fuel consumption display.
- Color Options
- Black
- Factory Warranty
- 24 months unlimited milage
- Power
- 86.00 HP (62.8 kW)) @ 6250 RPM
- Clutch
- Wet, multi-plate assist clutch
- Torque
- 110.00 Nm (11.2 kgf-m or 81.1 ft.lbs) @ 4500 RPM
- Gearbox
- 6-speed
- Driveline
- X ring chain. Primary drive: Gear.
- Engine Type
- 270° crank angle parallel twin
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection
- Bore X Stroke
- 97.6 x 80.0 mm (3.8 x 3.1 inches)
- Compression
- 11.0:1
- Displacement
- 1200.00 ccm (73.22 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Exhaust System
- Brushed
- stainless steel 2-into-2 single-skin exhaust system with
- Arrow
- brushed stainless silencers and carbon end caps
- Fuel Consumption
- 4.10 litres/100 km (24.4 km/l or 57.37 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Chain
- Dry Weight
- 228.0 kg (502.7 pounds)
- Seat Height
- 690 mm (27.2 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.50 litres (0.30 quarts)
- Fuel Capacity
- 9.00 litres (2.38 gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1,025 mm (40.4 inches)
- Power Weight Ratio
- 0.3772 HP/kg
- Rake
- 25.8°
- Seat
- Solo seat
- Trail
- 88 mm (3.5 inches)
- Wheels
- Wire 32-spoke, steel rims
- Rear Tyre
- 150/80-R16
- Frame Type
- Tubular
- steel cradle.
- Twin
- -sided, tubular steel swing arm.
- Front Tyre
- 100/90-19
- Rear Brakes
- Single
- disc.
- S
- .
- Nissin
- single piston floating caliper.
- Front Brakes
- Single
- disc.
- S
- .
- Brembo
- 2-piston floating caliper
- Rear Suspension
- Ohlins RSU, rebound and preload adjustable
- Front Suspension
- Ohlins
- , 43mm,
- D
- , fully adjustable,
- X
- 30
- Rear Wheel Travel
- 77 mm (3.0 inches)
- Front Wheel Travel
- 90 mm (3.5 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Black
