Back to Bike FinderYears: 2009
2009Classic

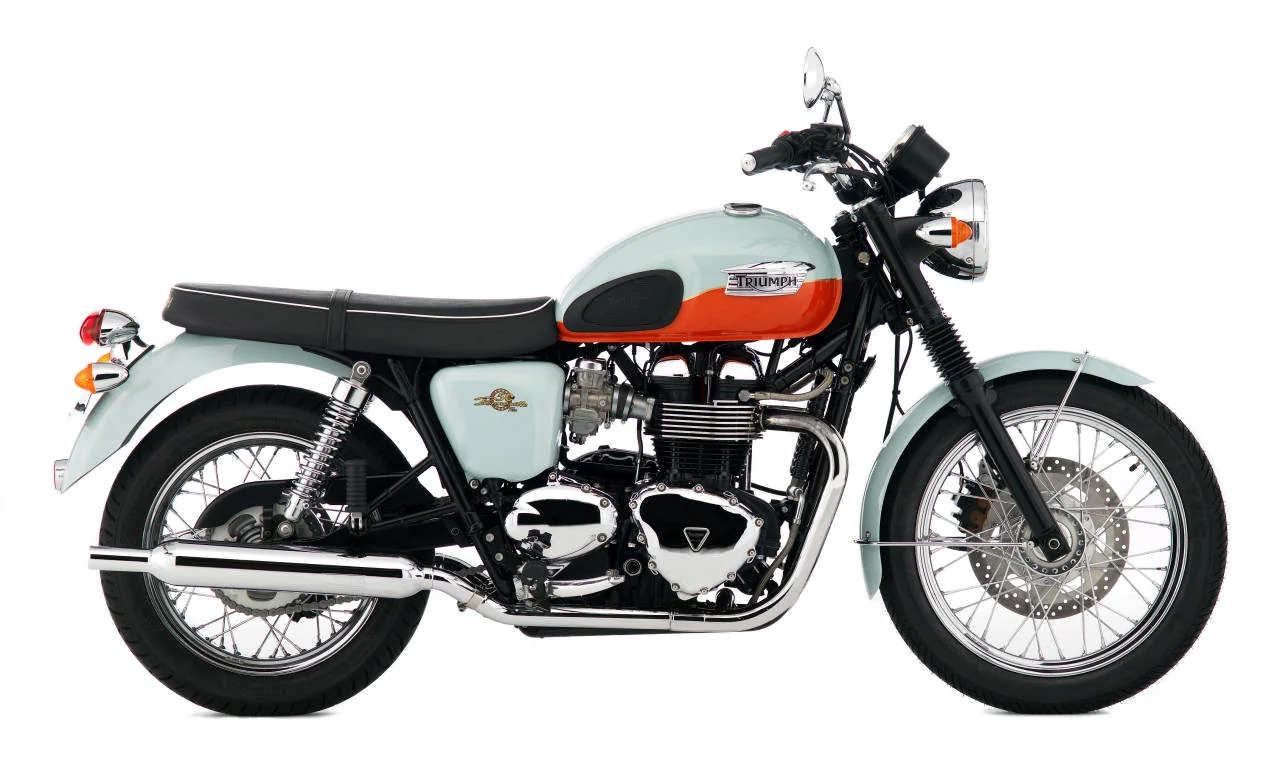

Triumph Bonneville 50th
Key specifications
Engine
865 cc
Power
67 HP
Torque
69 Nm
Weight
203 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Seat height
30 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Triumph
- Model
- Bonneville 50th
- Category
- Classic
- Starter
- Electric
- Comments
- Limited
- edition of 650 bikes celebrating the 50th
- Anniversary
- of the
- Bonneville
- .
- Color Options
- Light blue/orange
- Power
- 67.05 HP (48.9 kW)) @ 7500 RPM
- Clutch
- Wet. multi-plate
- Torque
- 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM
- Gearbox
- 5-speed
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with
- Bore X Stroke
- 90.0 x 68.0 mm (3.5 x 2.7 inches)
- Displacement
- 865.00 ccm (52.78 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 203.0 kg (447.5 pounds)
- Seat Height
- 751 mm (29.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Height
- 1,100 mm (43.3 inches)
- Overall Length
- 2,144 mm (84.4 inches)
- Power Weight Ratio
- 0.3303 HP/kg
- Rake
- 27.0°
- Trail
- 106 mm (4.2 inches)
- Rear Tyre
- 130/80-R17
- Frame Type
- Tubular steel cradle
- Front Tyre
- 100/70-R17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Chromed spring twin shocks with adjustable preload. 100mm rear wheel travel
- Front Suspension
- 41mm forks. 120mm travel
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Light blue/orange
