Back to Bike FinderYears: 2010 · 2008 · 2007
2010Classic

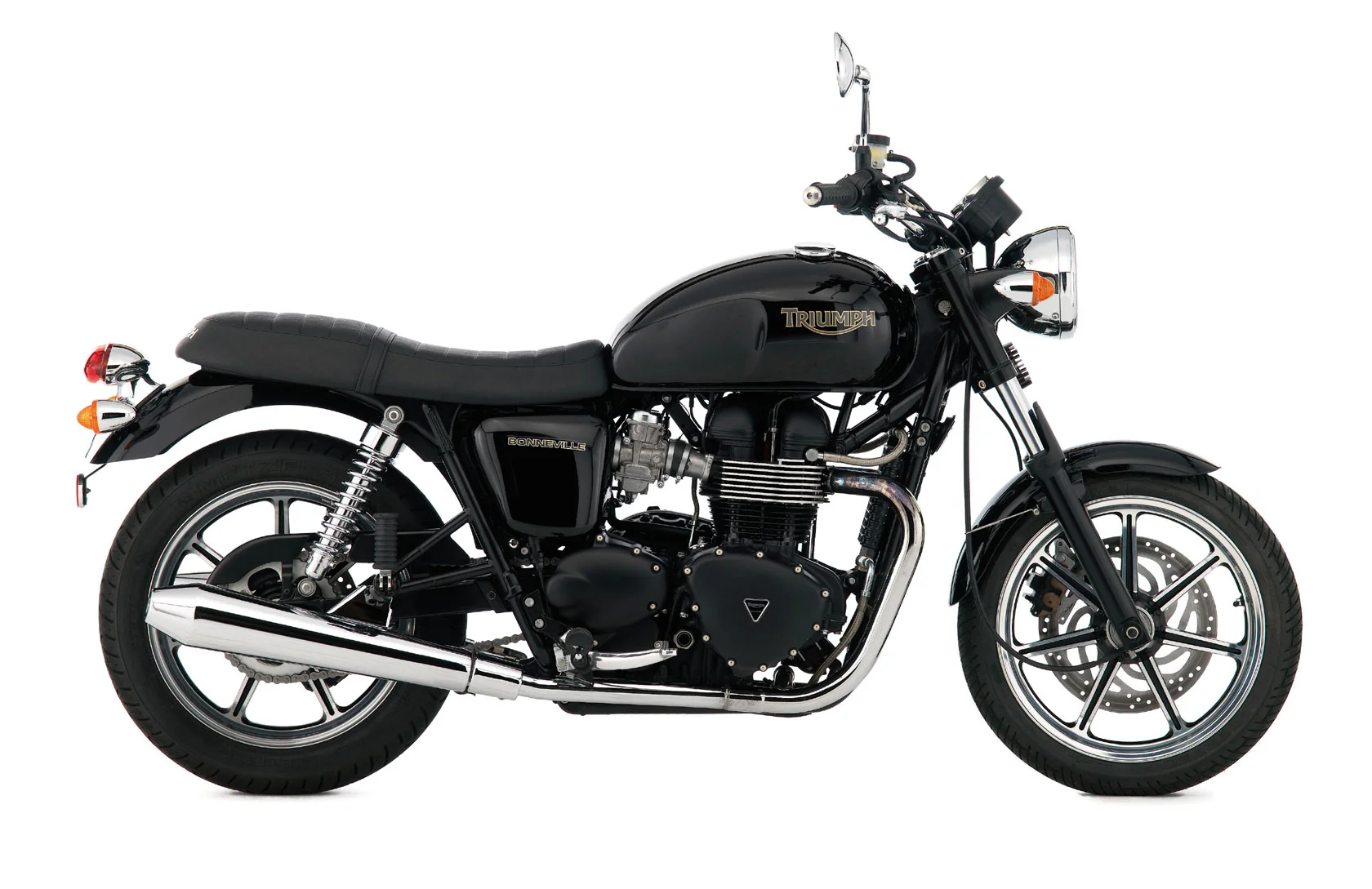

Triumph Bonneville Black
Key specifications
Engine
865 cc
Power
67 HP
Torque
68 Nm
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. Nissin 2 piston floating caliper
Rear brakes
Single disc. Nissin 2 piston floating caliper
Technical details
Source specification data
- Make
- Triumph
- Model
- Bonneville Black
- Category
- Classic
- Comments
- Special Edition of the T100
- Color Options
- All black.
- Power
- 67.05 HP (48.9 kW)) @ 7500 RPM
- Clutch
- Wet. multi-plate
- Torque
- 68.00 Nm (6.9 kgf-m or 50.2 ft.lbs) @ 5800 RPM
- Gearbox
- 5-speed
- Fuel System
- Injection
- Bore X Stroke
- 90.0 x 68.0 mm (3.5 x 2.7 inches)
- Compression
- 9.2:1
- Displacement
- 865.00 ccm (52.78 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Transmission Type Final Drive
- Chain
- Seat Height
- 775 mm (30.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 790 mm (31.1 inches)
- Overall Height
- 1,100 mm (43.3 inches)
- Overall Length
- 2,230 mm (87.8 inches)
- Weight Incl Oil Gas Etc
- 230.0 kg (507.1 pounds)
- Rake
- 28.0°
- Trail
- 110 mm (4.3 inches)
- Rear Tyre
- 130/80-R17
- Frame Type
- Tubular
- steel cradle.
- Swingarm
- :
- Twin
- -sided, tubular steel.
- Front Tyre
- 100/90-19
- Rear Brakes
- Single
- disc.
- Nissin
- 2 piston floating caliper
- Front Brakes
- Single
- disc.
- Nissin
- 2 piston floating caliper
- Rear Suspension
- Kayaba chromed spring twin shocks with adjustable preload
- Front Suspension
- Kayaba 41mm forks.
- Rear Wheel Travel
- 106 mm (4.2 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
All black.
