2018Classic

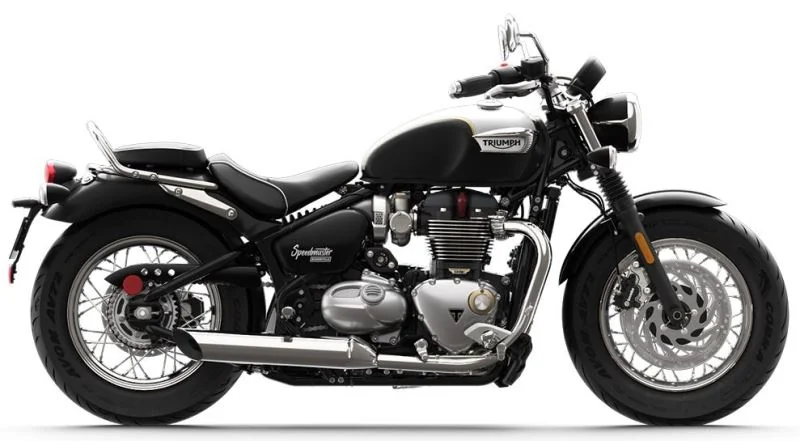

Triumph Bonneville Speedmaster
$13,150
Key specifications
Engine
1200 cc
Power
77 HP
Torque
106 Nm
Weight
246 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
6-speed
Seat height
28 mm
Front brakes
Single disc. ABS. Brembo 2-piston floating caliper
Rear brakes
Single disc. ABS. Nissin 2-piston floating caliper
Technical details
Source specification data
- Make
- Triumph
- Model
- Bonneville Speedmaster
- Price
- S
- $ 13150.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Classic
- Starter
- Electric
- Instruments
- LCD multi-functional instrument pack with analogue speedometer, odometer, gear position indicator, fuel gauge
- Color Options
- Black, white, silver, silver/red
- Factory Warranty
- 24 months unlimited milage
- Power
- 77.00 HP (56.2 kW)) @ 6100 RPM
- Clutch
- Wet, multi-plate assist clutch
- Torque
- 106.00 Nm (10.8 kgf-m or 78.2 ft.lbs) @ 4000 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 97.6 x 80.0 mm (3.8 x 3.1 inches)
- Compression
- 10.0:1
- Displacement
- 1200.00 ccm (73.22 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Exhaust System
- Chromed 2 into 2 exhaust system with twin chrome silencers
- Fuel Consumption
- 4.50 litres/100 km (22.2 km/l or 52.27 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 245.5 kg (541.2 pounds)
- Seat Height
- 705 mm (27.8 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.50 litres (0.30 quarts)
- Fuel Capacity
- 12.11 litres (3.20 gallons)
- Overall Width
- 770 mm (30.3 inches)
- Overall Height
- 1,040 mm (40.9 inches)
- Power Weight Ratio
- 0.3136 HP/kg
- Rake
- 25.3°
- Trail
- 91 mm (3.6 inches)
- Wheels
- 32-spoke
- Rear Tyre
- 150/80-R16
- Frame Type
- Tubular
- steel cradle.
- Twin
- -sided, tubular steel swing arm.
- Front Tyre
- 130/90-B16
- Rear Brakes
- Single
- disc.
- S
- .
- Nissin
- 2-piston floating caliper
- Front Brakes
- Single
- disc.
- S
- .
- Brembo
- 2-piston floating caliper
- Rear Suspension
- KYB monoshock with linkage and stepped preload adjuster
- Front Suspension
- KYB 41 mm forks with cartridge damping
- Rear Wheel Travel
- 73 mm (2.9 inches)
- Front Wheel Travel
- 90 mm (3.5 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Blackwhitesilversilver/red
