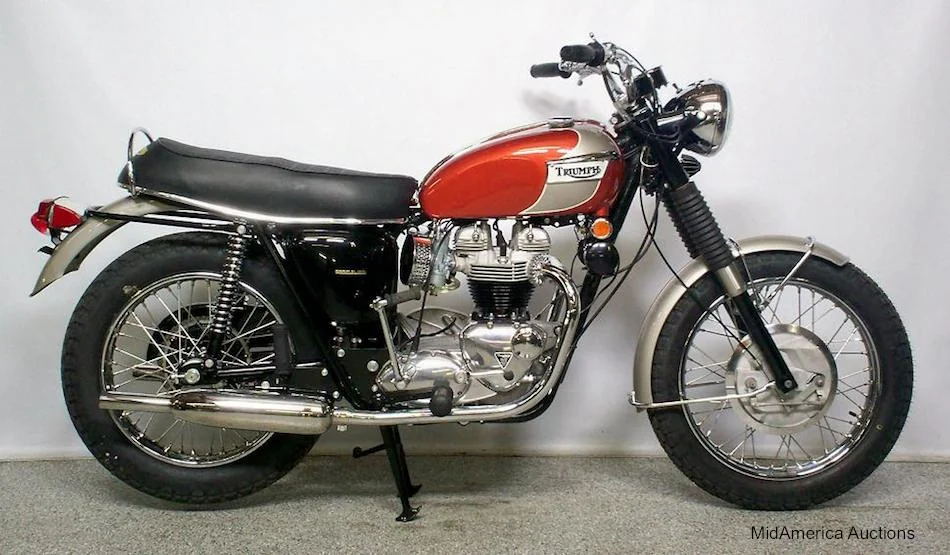

Triumph Bonneville T120C Street Scrambler

Key specifications

Engine

649 cc

Power

46 HP

Weight

165 kg

Fuel type

petrol

Fuel capacity

2.5 L

Transmission

4-speed

Seat height

31 mm

Front brakes

Expanding brake (drum brake). Twin Leading Shoe

Rear brakes

Expanding brake (drum brake)

Technical details

Source specification data

Make: Triumph
Model: Bonneville T120C Street Scrambler
Category: Allround

Starter: Kick
Comments: Street Scrambler with high exhaust pipes.
Electrical: 12-volt electrics
Color Options: Red

Power

46.00 HP (33.6 kW)) @ 6500 RPM

Clutch

Multi-plate, wet

Gearbox

4-speed

Ignition

Lucas

Top Speed

185.0 km/h (115.0 mph)

Fuel System

Carburettor: .
Amal: concentric carburettor, 30 mm.

Bore X Stroke

71.0 x 82.0 mm (2.8 x 3.2 inches)

Compression

9.0:1

Displacement

649.00 ccm (39.60 cubic inches)

Cooling System

Air

Engine Details

Twin, four-stroke

Transmission Type Final Drive

Chain

Dry Weight: 165.0 kg (363.8 pounds)
Seat Height: 775 mm (30.5 inches) If adjustable, lowest setting.
Fuel Capacity: 9.46 litres (2.50 gallons)
Ground Clearance: 127 mm (5.0 inches)
Power Weight Ratio: 0.2788 HP/kg

Rake: 26.0°
Seat: Dual seat
Wheels: Wire spoked, grey and black
Rear Tyre: 4.00-18
Frame Type: Brazed lug, full-cradle, single downtube
Front Tyre: 3.25-19
Rear Brakes: Expanding brake (drum brake)
Front Brakes: Expanding brake (drum brake). Twin Leading Shoe
Rear Suspension: Swing arm, 2 Girling dampers
Front Suspension: Telescopic fork, hydraulic damping.
Rear Brakes Diameter: 178 mm (7.0 inches)
Front Brakes Diameter: 203 mm (8.0 inches)

Available colors

Red
