2010Sportbike

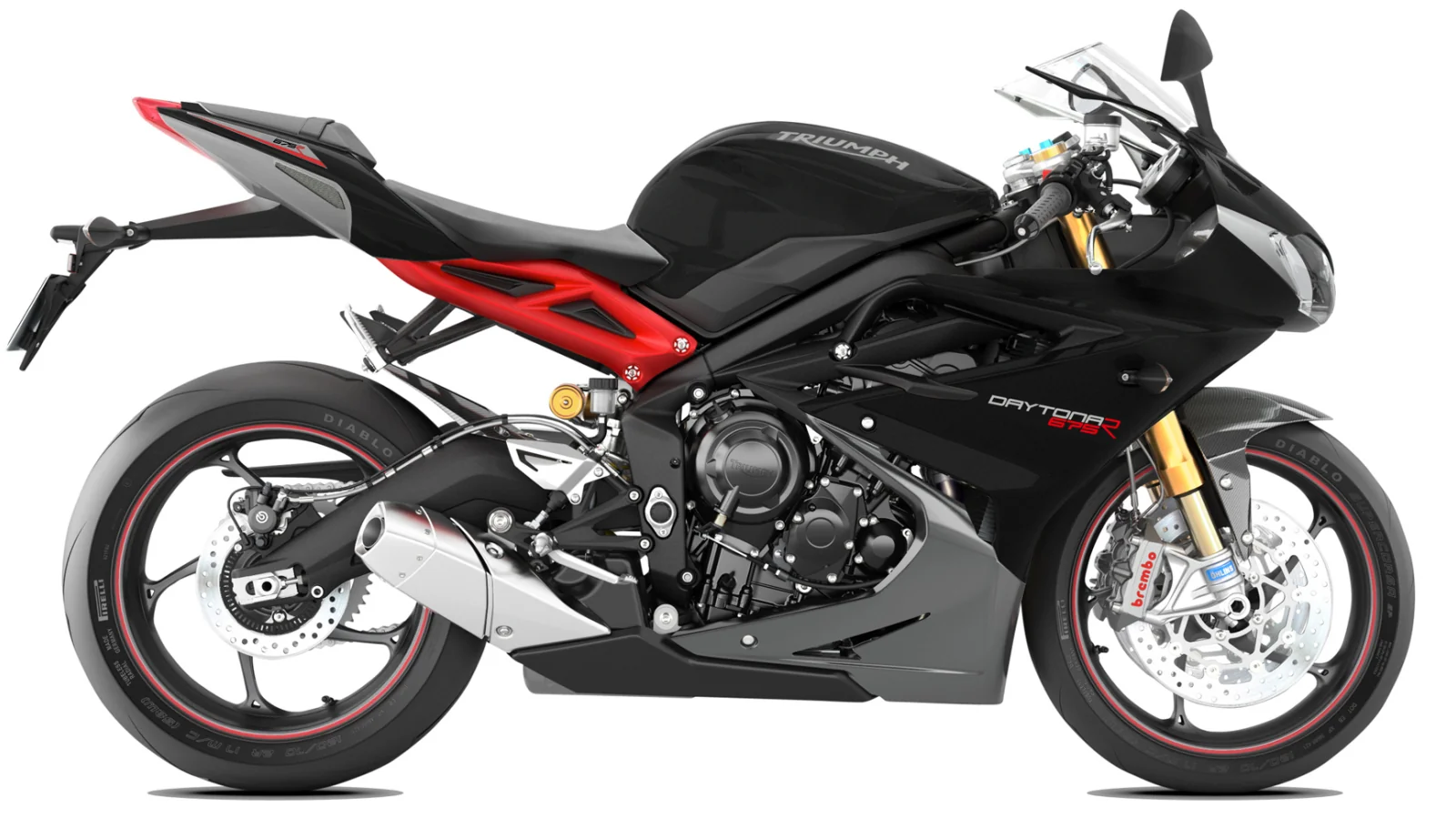

Triumph Daytona 675
Key specifications
Engine
675 cc
Power
126 HP
Torque
75 Nm
Weight
162 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Nissin 4-piston radial mono-block calipers
Rear brakes
Single disc. Nissin single piston caliper
Technical details
Source specification data
- Make
- Triumph
- Model
- Daytona 675
- Category
- Classic
- Starter
- Electric
- Color Options
- Phantom Black, Tornado Red
- Power
- 126.05 HP (92.0 kW)) @ 12600 RPM
- Clutch
- Wet. multi-plate
- Torque
- 75.00 Nm (7.6 kgf-m or 55.3 ft.lbs) @ 11750 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with forced air induction
- Bore X Stroke
- 74.0 x 52.3 mm (2.9 x 2.1 inches)
- Compression
- 12.7:1
- Displacement
- 675.00 ccm (41.19 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 162.0 kg (357.1 pounds)
- Seat Height
- 825 mm (32.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 17.40 litres (4.60 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 2,010 mm (79.1 inches)
- Power Weight Ratio
- 0.7781 HP/kg
- Weight Incl Oil Gas Etc
- 184.0 kg (405.7 pounds)
- Rake
- 23.9°
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminium
- beam twin spar.
- Swingarm
- : braced, twin-sided, aluminium alloy with adjustable pivot position.
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Nissin
- single piston caliper
- Front Brakes
- Double
- disc.
- Nissin
- 4-piston radial mono-block calipers
- Rear Suspension
- Kayaba monoshock with piggy back reservoir adjustable for preload, rebound and high/low speed comporession damping
- Front Suspension
- Kayaba 41mm upside down forks with adjustable preload, rebound and high/low speed compression damping
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 308 mm (12.1 inches)
Available colors
Phantom BlackTornado Red
