Back to Bike FinderYears: 2020
2020Sportbike

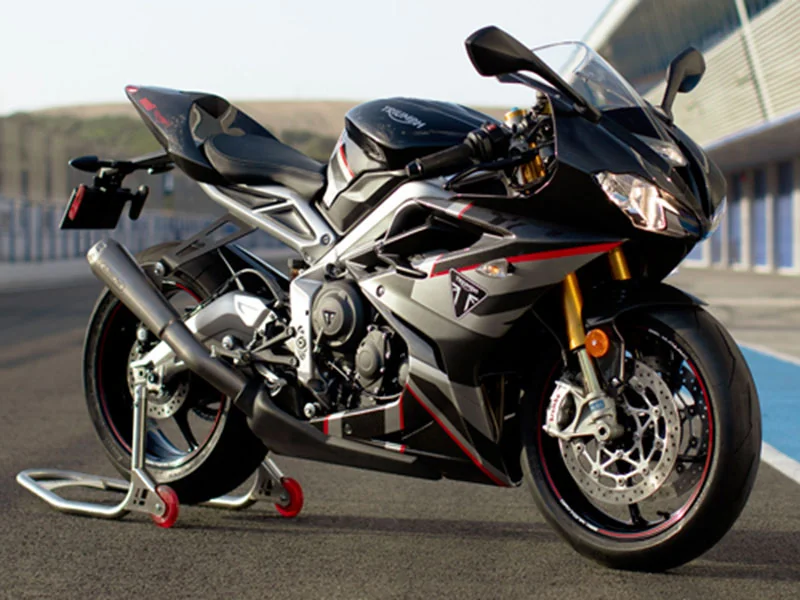

Triumph Daytona Moto TM 765 Limited Edition
Key specifications
Engine
765 cc
Power
128 HP
Torque
80 Nm
Weight
165 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Brembo M4.30 Stylema 4-piston radial monobloc calipers. ABS.
Rear brakes
Single disc. Brembo single 2-piston sliding caliper. Switchable ABS.
Technical details
Source specification data
- Make
- Triumph
- Model
- Daytona Moto TM 765 Limited Edition
- Category
- Sport
- Starter
- Electric
- Color Options
- Gray/Silver
- Modifications Compared To Previous Model
- Limited edition
- Power
- 128.00 HP (93.4 kW)) @ 12250 RPM
- Clutch
- Wet. multi-plate
- Torque
- 80.00 Nm (8.2 kgf-m or 59.0 ft.lbs) @ 9750 RPM
- Gearbox
- 6-speed
- Ignition
- Digital-inductive type via engine management system
- Driveline
- O ring chain. Primary drive: Gear.
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with forced air induction and
- Bore X Stroke
- 78.0 x 53.4 mm (3.1 x 2.1 inches)
- Compression
- 12.9:1
- Displacement
- 765.00 ccm (46.68 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Exhaust System
- Stainless steel 3 into 1 system with valve in secondary and under seat silencer
- Fuel Consumption
- 5.20 litres/100 km (19.2 km/l or 45.23 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 165.0 kg (363.8 pounds)
- Seat Height
- 822 mm (32.4 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.50 litres (0.23 quarts)
- Fuel Capacity
- 17.41 litres (4.60 gallons)
- Overall Width
- 718 mm (28.3 inches)
- Overall Height
- 1,105 mm (43.5 inches)
- Overall Length
- 2,019 mm (79.5 inches)
- Power Weight Ratio
- 0.7758 HP/kg
- Rake
- 23.2°
- Trail
- 91 mm (3.6 inches)
- Wheels
- Cast aluminium alloy 5-spoke
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminum beam twin spar
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Brembo
- single 2-piston sliding caliper.
- S
- .
- Front Brakes
- Double
- disc.
- Brembo M4
- .30
- Stylema
- 4-piston radial monobloc calipers.
- S
- .
- Rear Suspension
- Öhlins TTX36 twin tubemonoshock with piggy back reservoir adjustable for preload. rebound and high/low speed compression damping. 130mm rear wheel travel
- Front Suspension
- Öhlins 43mm upside down forksNIX30 with adjustable preload. rebound and high/low speed compression damping. 110mm wheel travel
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Gray/Silver
