Back to Bike FinderYears: 2020 · 2019
2019Classic

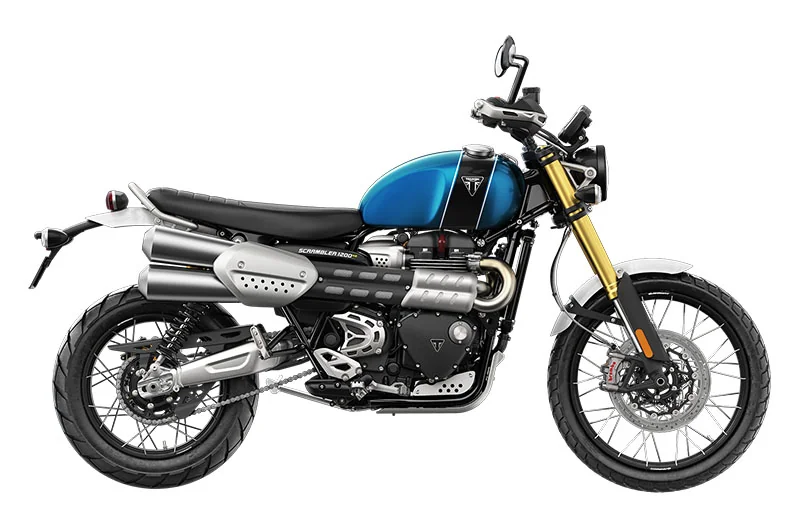

Triumph Scrambler 1200XE
Key specifications
Engine
1200 cc
Power
89 HP
Torque
81 Nm
Weight
205 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Seat height
33 mm
Front brakes
Double disc. Brembo 2-piston floating caliper
Rear brakes
Single disc. Brembo 2-piston floating caliper ABS
Technical details
Source specification data
- Make
- Triumph
- Model
- Scrambler 1200XE
- Category
- Classic
- Starter
- Electric
- Instruments
- Analogue speedometer with odometer and trip information
- Color Options
- Cobalt Blue/Jet Black
- Factory Warranty
- 24 months unlimited milage
- Power
- 89.00 HP (65.0 kW)) @ 7400 RPM
- Clutch
- Wet. multi-plate
- Torque
- 81.00 Nm (8.3 kgf-m or 59.7 ft.lbs) @ 3950 RPM
- Gearbox
- 5-speed
- Ignition
- Digital-inductive type via engine management system
- Driveline
- X ring chain
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with
- Bore X Stroke
- 97.6 x 80.0 mm (3.8 x 3.1 inches)
- Compression
- 9.2:1
- Displacement
- 1200.00 ccm (73.22 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Exhaust System
- High level stainless steel headers with twin chromed silencers
- Fuel Consumption
- 5.11 litres/100 km (19.6 km/l or 46.03 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Transmission Type Final Drive
- Chain
- Dry Weight
- 205.0 kg (452.0 pounds)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.50 litres (0.30 quarts)
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Height
- 1,200 mm (47.2 inches)
- Power Weight Ratio
- 0.4341 HP/kg
- Rake
- 25.8°
- Trail
- 121 mm (4.8 inches)
- Wheels
- Spoked wheels
- Rear Tyre
- 150/50-17
- Frame Type
- Tubular steel cradle
- Front Tyre
- 90/90-21
- Rear Brakes
- Single
- disc.
- Brembo
- 2-piston floating caliper
- Front Brakes
- Double
- disc.
- Brembo
- 2-piston floating caliper
- Rear Suspension
- Fully
- adjustable
- Ohlins
- twin shocks with piggy back reservoir
- Front Suspension
- Showa 45mm fully adjustable upside down forksl
- Rear Wheel Travel
- 200 mm (7.9 inches)
- Front Wheel Travel
- 200 mm (7.9 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Cobalt Blue/Jet Black
