Back to Bike FinderYears: 2016
2016Naked

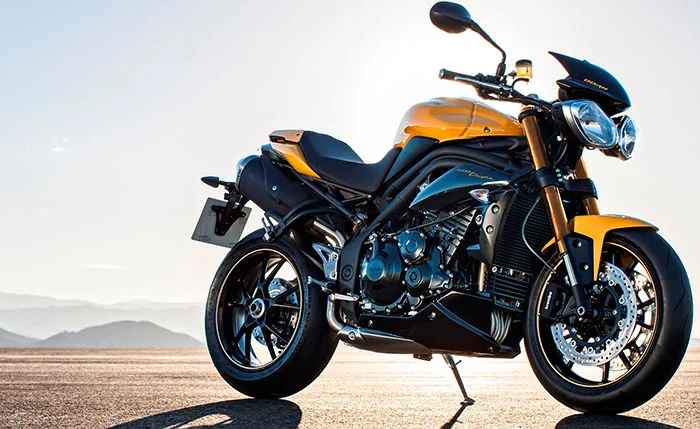

Triumph Speed 94 R
$10,999
Key specifications
Engine
1050 cc
Power
135 HP
Torque
111 Nm
Weight
191 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Brembo 4-piston 4-pad radial calipers. Switchable ABS.
Rear brakes
Single disc. Nissin single 2-piston sliding caliper. Switchable ABS.
Technical details
Source specification data
- Make
- Triumph
- Model
- Speed 94 R
- Price
- S
- $ 10999.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Naked bike
- Starter
- Electric
- Instruments
- LCD
- Color Options
- Racing Yellow, Jet Black
- Factory Warranty
- 2 year warranty unlimited mileage
- Power
- 135.00 HP (98.5 kW)) @ 9400 RPM
- Clutch
- Wet. multi-plate
- Torque
- 111.00 Nm (11.3 kgf-m or 81.9 ft.lbs) @ 7750 RPM
- Gearbox
- 6-speed
- Driveline
- X ring chain
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with
- Bore X Stroke
- 79.0 x 71.4 mm (3.1 x 2.8 inches)
- Compression
- 12.0:1
- Displacement
- 1050.00 ccm (64.07 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Exhaust System
- Stainless Steel 3 into 1 into 2. twin high level stainless steel pipes.
- Fuel Consumption
- 6.92 litres/100 km (14.5 km/l or 33.99 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 191.0 kg (421.1 pounds)
- Seat Height
- 825 mm (32.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.80 litres (0.25 quarts)
- Fuel Capacity
- 17.50 litres (4.62 gallons)
- Overall Width
- 795 mm (31.3 inches)
- Overall Height
- 1,110 mm (43.7 inches)
- Overall Length
- 2,100 mm (82.7 inches)
- Power Weight Ratio
- 0.7068 HP/kg
- Rake
- 22.8°
- Trail
- 91 mm (3.6 inches)
- Wheels
- Cast aluminium alloy multi-spoke
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminum
- beam twin-spar.
- Single
- -sided, aluminum alloy with eccentric chain adjuster swing arm.
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Nissin
- single 2-piston sliding caliper.
- S
- .
- Front Brakes
- Double
- disc.
- Brembo
- 4-piston 4-pad radial calipers.
- S
- .
- Rear Suspension
- X36
- twin tube
- Monoshock
- with rebound and compression damping
- Front Suspension
- Öhlins 43mm NIX30 upside down forks with adjustable rebound and compression damping.
- Rear Wheel Travel
- 130 mm (5.1 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Racing YellowJet Black
