Back to Bike FinderYears: 2006
2006Sportbike

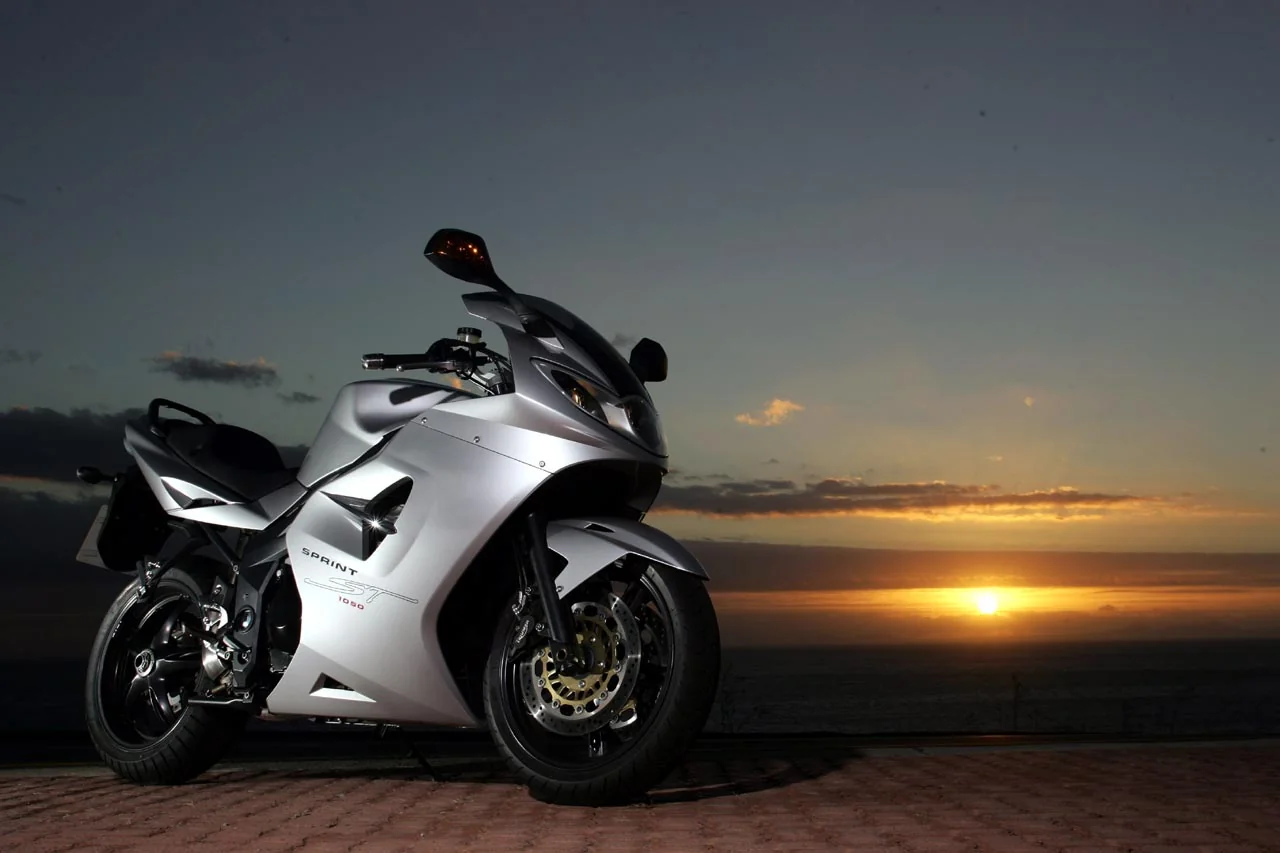

Triumph Sprint ST ABS
Key specifications
Engine
1050 cc
Power
125 HP
Torque
105 Nm
Weight
213 kg
Fuel type
petrol
Fuel capacity
5.3 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. ABS
Rear brakes
Single disc. ABS
Technical details
Source specification data
- Make
- Triumph
- Model
- Sprint ST ABS
- Category
- Sport
- Starter
- Electric
- Color Options
- Aluminum Silver
- .
- Caspian Blue
- .
- Power
- 125.00 HP (91.2 kW)) @ 9100 RPM
- Clutch
- Wet. multi-plate
- Torque
- 105.00 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 7500 RPM
- Gearbox
- 6-speed
- Ignition
- Digital - inductive type - via electronic engine managment system
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection
- Bore X Stroke
- 79.0 x 71.4 mm (3.1 x 2.8 inches)
- Compression
- 12.0:1
- Displacement
- 1050.00 ccm (64.07 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Dry Weight
- 213.0 kg (469.6 pounds)
- Seat Height
- 805 mm (31.7 inches) If adjustable, lowest setting.
- Fuel Capacity
- 20.00 litres (5.28 gallons)
- Overall Width
- 750 mm (29.5 inches)
- Overall Height
- 1,145 mm (45.1 inches)
- Overall Length
- 2,114 mm (83.2 inches)
- Power Weight Ratio
- 0.5869 HP/kg
- Rake
- 24.0°
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminium beam perimeter
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. ABS
- Front Brakes
- Double disc. ABS
- Rear Suspension
- Monoshock with adjustable preload and rebound damping
- Front Suspension
- 43mm cartridge forks with dual rate springs and adjustable preload
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Aluminum Silver. Caspian Blue. Sunset Red
