2017Naked

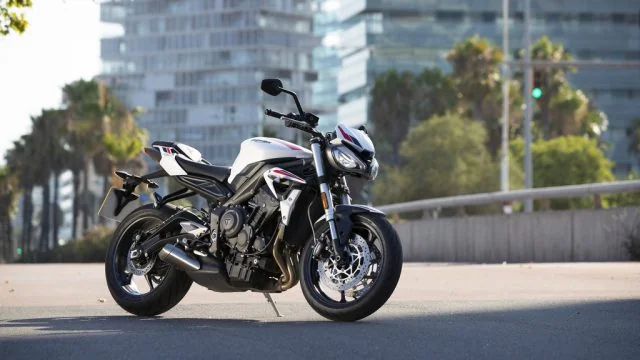

Triumph Street Triple S
Key specifications
Engine
765 cc
Power
113 HP
Torque
73 Nm
Weight
166 kg
Fuel type
petrol
Fuel capacity
4.6 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Nissin 2-piston sliding calipers. ABS.
Rear brakes
Single disc. Brembo single piston sliding caliper. ABS.
Technical details
Source specification data
- Make
- Triumph
- Model
- Street Triple S
- Category
- Naked bike
- Light
- LED headlights
- Starter
- Electric
- Comments
- Switchable traction control.
- Instruments
- LCD instrument pack with analogue tacho
- Color Options
- Phantom Black, Diablo Red
- Factory Warranty
- 24 month warranty unlimited mileage
- Power
- 113.00 HP (82.5 kW)) @ 11250 RPM
- Clutch
- Wet. multi-plate
- Torque
- 73.00 Nm (7.4 kgf-m or 53.8 ft.lbs) @ 9100 RPM
- Gearbox
- 6-speed
- Driveline
- X ring chain
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with
- Bore X Stroke
- 78.0 x 53.4 mm (3.1 x 2.1 inches)
- Compression
- 12.7:1
- Displacement
- 765.00 ccm (46.68 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Exhaust System
- Stainless steel 3 into 1 exhaust system low single sided stainless steel silencer
- Emission Details
- Euro 4
- Fuel Consumption
- 4.70 litres/100 km (21.3 km/l or 50.05 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 166.0 kg (366.0 pounds)
- Seat Height
- 810 mm (31.9 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.80 litres (0.25 quarts)
- Fuel Capacity
- 17.40 litres (4.60 gallons)
- Overall Width
- 740 mm (29.1 inches)
- Overall Height
- 1,060 mm (41.7 inches)
- Overall Length
- 2,055 mm (80.9 inches)
- Power Weight Ratio
- 0.6807 HP/kg
- Rake
- 24.8°
- Trail
- 104 mm (4.1 inches)
- Wheels
- Cast aluminium alloy 5-spoke
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Aluminium
- beam twin spar.
- Rear
- 2 piece high pressure die cast.
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single
- disc.
- Brembo
- single piston sliding caliper.
- S
- .
- Front Brakes
- Double
- disc.
- Nissin
- 2-piston sliding calipers.
- S
- .
- Rear Suspension
- Showa piggyback reservoir monoshock,
- Front Suspension
- Showa
- 41mm upside down separate function forks (
- F
- )
- Rear Wheel Travel
- 124 mm (4.9 inches)
- Front Wheel Travel
- 110 mm (4.3 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Phantom BlackDiablo Red
