Back to Bike FinderYears: 2015
2015Classic

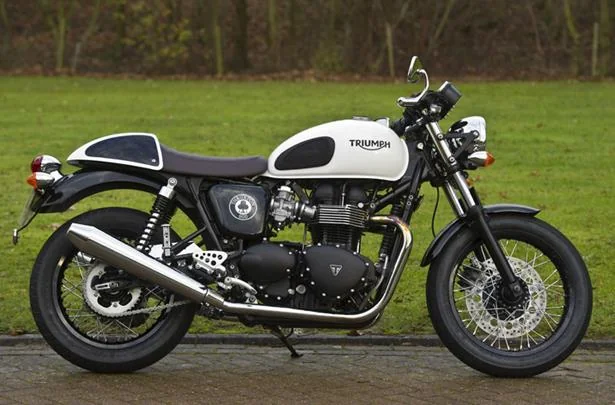

Triumph Thruxton Ace
Key specifications
Engine
865 cc
Power
69 HP
Torque
69 Nm
Weight
214 kg
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc. Nissin 2-piston floating caliper
Rear brakes
Single disc. Nissin 2-piston floating caliper
Technical details
Source specification data
- Make
- Triumph
- Model
- Thruxton Ace
- Category
- Classic
- Starter
- Electric
- Comments
- Special
- edition celebrating
- Triumphs
- long association with the
- Ace Caf
- é in
- North London
- , a biker hangout from the 1960s that was the center of the café racer culture.
- Color Options
- White
- Factory Warranty
- 2 year unlimited milage
- Power
- 69.00 HP (50.4 kW)) @ 7400 RPM
- Clutch
- Wet. multi-plate
- Torque
- 69.00 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 5800 RPM
- Gearbox
- 5-speed
- Ignition
- Digital-inductive type via engine management system
- Driveline
- X ring chain
- Engine Type
- 360º firing interval
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection with
- Bore X Stroke
- 90.0 x 90.0 mm (3.5 x 3.5 inches)
- Compression
- 9.9:1
- Displacement
- 865.00 ccm (52.78 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Exhaust System
- Stainless steel headers. twin chromed upswept mufflers
- Fuel Consumption
- 5.47 litres/100 km (18.3 km/l or 43.00 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 214.0 kg (471.8 pounds)
- Seat Height
- 820 mm (32.3 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.50 litres (0.30 quarts)
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1,095 mm (43.1 inches)
- Overall Length
- 2,150 mm (84.6 inches)
- Power Weight Ratio
- 0.3224 HP/kg
- Weight Incl Oil Gas Etc
- 230.0 kg (507.1 pounds)
- Rake
- 27.0°
- Trail
- 97 mm (3.8 inches)
- Wheels
- Wire spoked
- Rear Tyre
- 130/80-17
- Frame Type
- Tubular steel cradle
- Front Tyre
- 100/90-18
- Rear Brakes
- Single
- disc.
- Nissin
- 2-piston floating caliper
- Front Brakes
- Single
- disc.
- Nissin
- 2-piston floating caliper
- Rear Suspension
- Kayaba chromed spring twin shocks with adjustable preload. 106mm rear wheel travel
- Front Suspension
- Kayaba 41mm forks with adjustable preload. 120mm travel
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
White
