Back to Bike FinderYears: 2011
2011Touring

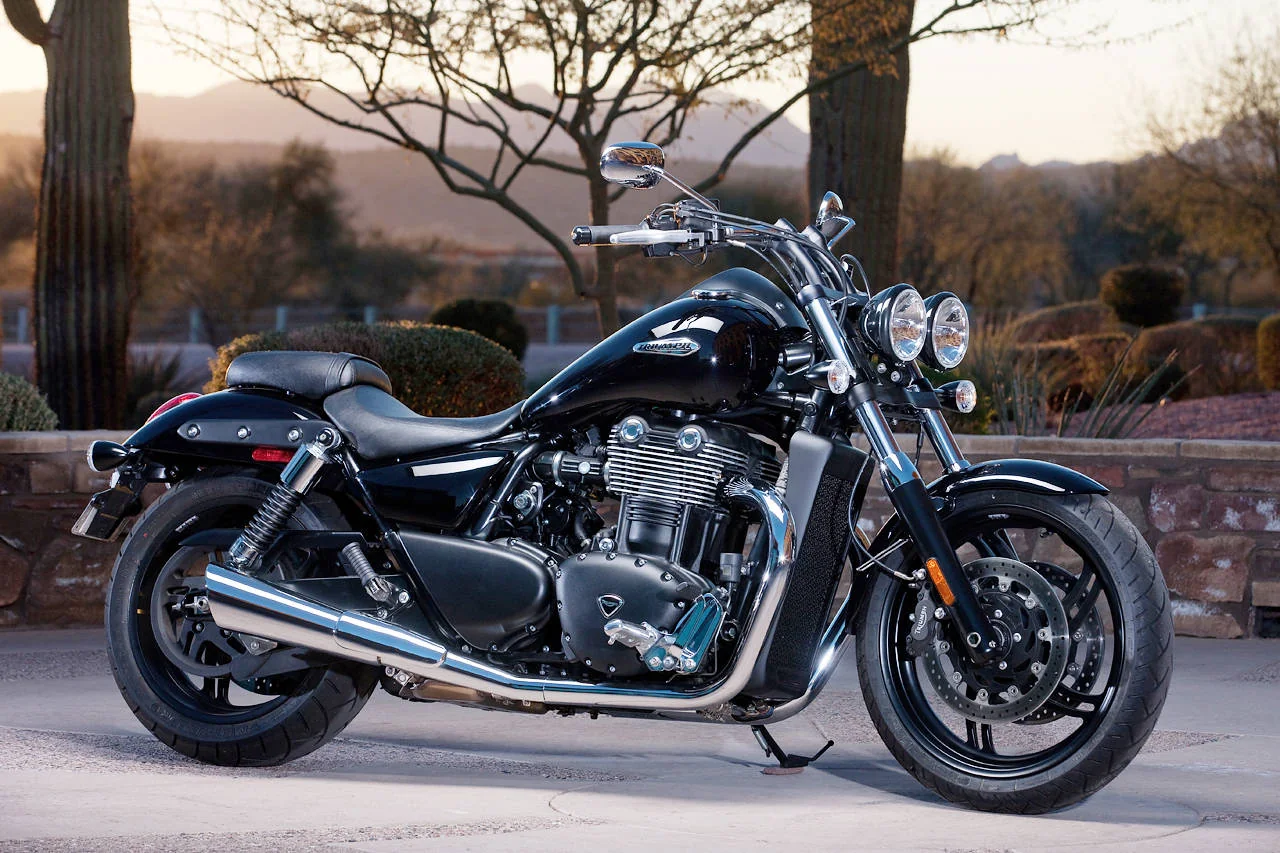

Triumph Thunderbird SE
Key specifications
Engine
1597 cc
Power
85 HP
Torque
146 Nm
Fuel type
petrol
Fuel capacity
5.8 L
Transmission
6-speed
Seat height
28 mm
Front brakes
Double disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Triumph
- Model
- Thunderbird SE
- Category
- Touring
- Starter
- Electric
- Comments
- Special edition
- Instruments
- Analogue
- speedometer featuring integrated rev counter, scroll button on handlebars,
- D
- trip computer, fuel gauge and clock
- Color Options
- Red
- Power
- 85.00 HP (62.0 kW)) @ 4850 RPM
- Clutch
- Wet. multi-plate
- Torque
- 146.45 Nm (14.9 kgf-m or 108.0 ft.lbs) @ 2750 RPM
- Gearbox
- 6-speed
- Ignition
- Digital-inductive type via engine management system
- Driveline
- Toothed belt. Primary drive: Gear.
- Engine Type
- 270º firing interval
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection. progressive linkage on throttle
- Bore X Stroke
- 79.0 x 103.8 mm (3.1 x 4.1 inches)
- Compression
- 9.7:1
- Displacement
- 1597.00 ccm (97.45 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Twin, four-stroke
- Exhaust System
- Chromed twin-skin stainless steel 2 into 1 into 2, tandem large-volume catalysts in centralised catbox, chrome-plated silencers
- Transmission Type Final Drive
- Belt
- Seat Height
- 699 mm (27.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 21.95 litres (5.80 gallons)
- Overall Width
- 879 mm (34.6 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 2,339 mm (92.1 inches)
- Weight Incl Oil Gas Etc
- 338.4 kg (746.0 pounds)
- Rake
- 32.0°
- Wheels
- Cast aluminium alloy 5-spoke
- Rear Tyre
- 200/50-R17
- Frame Type
- Tubular steel. twin spine
- Front Tyre
- 120/70-R19
- Rear Brakes
- Single disc
- Front Brakes
- Double disc
- Rear Suspension
- Showa chromed spring twin shocks with 5 position adjustable preload. 95mm rear wheel travel
- Front Suspension
- Showa 47mm forks. 120mm travel
- Rear Brakes Diameter
- 310 mm (12.2 inches)
- Front Brakes Diameter
- 310 mm (12.2 inches)
Available colors
Red
