Back to Bike FinderYears: 2021 · 2020 · 2019 · 2018
2020Allround

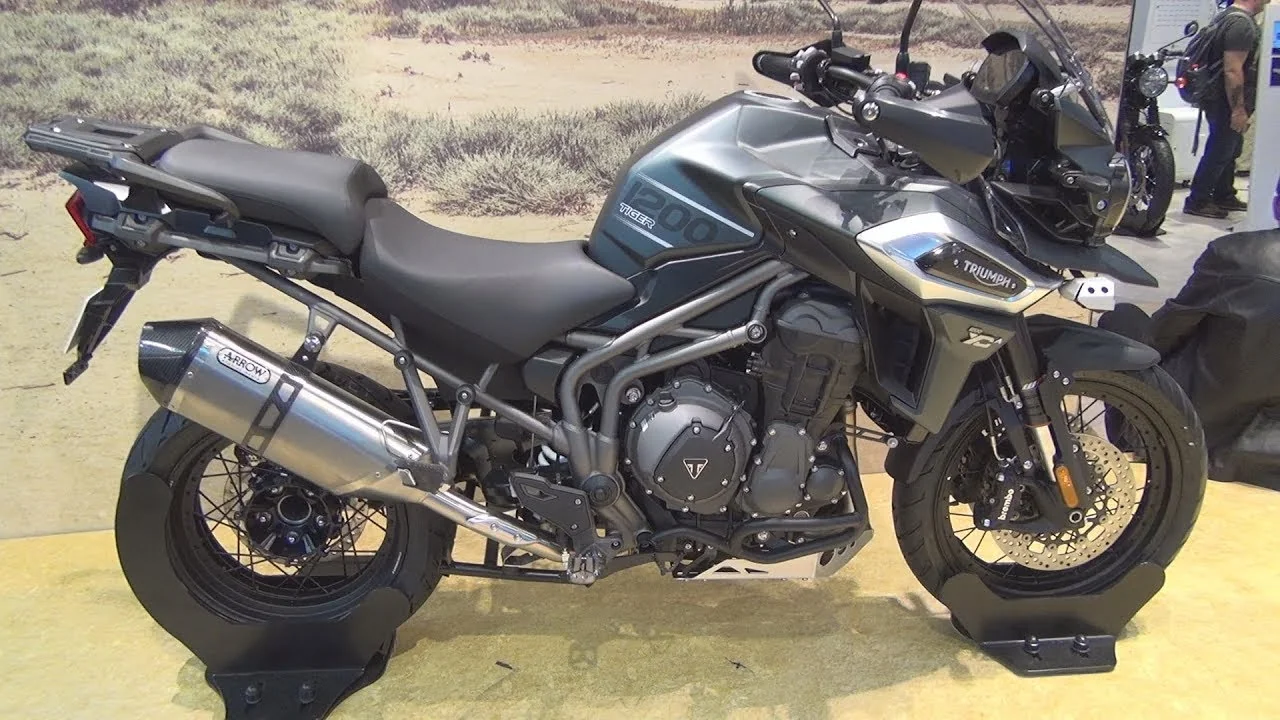

Triumph Tiger 1200 XCA
$22,000
Key specifications
Engine
1215 cc
Power
141 HP
Torque
122 Nm
Weight
248 kg
Fuel type
petrol
Fuel capacity
5.3 L
Transmission
6-speed
Seat height
34 mm
Front brakes
Double disc. Floating discs, radially mounted monobloc Brembo calipers, 4-piston, switchable ABS
Rear brakes
Single disc. Nissin 2-piston sliding caliper, Switchable ABS
Technical details
Source specification data
- Make
- Triumph
- Model
- Tiger 1200 XCA
- Price
- S
- $ 22000.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Allround
- Starter
- Electric
- Instruments
- D
- instrument pack with digital speedometer, analogue tachometer, gear position indicator, fuel gauge, range to empty, service indicator, clock, air temperature, frost warning, hazard warning lights, trip computer,
- Tyre
- pressure monitoring system
- Color Options
- Gray, white
- Factory Warranty
- 24 months unlimited mileage
- Power
- 141.00 HP (102.9 kW)) @ 9350 RPM
- Clutch
- Wet. multi-plate
- Torque
- 122.00 Nm (12.4 kgf-m or 90.0 ft.lbs) @ 7600 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 85.0 x 71.4 mm (3.3 x 2.8 inches)
- Compression
- 11.0:1
- Displacement
- 1215.00 ccm (74.14 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Exhaust System
- Stainless steel 3 into 1 side mounted stainless steel silencer
- Emission Details
- Euro 4
- Fuel Consumption
- 4.90 litres/100 km (20.4 km/l or 48.00 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 248.0 kg (546.7 pounds)
- Seat Height
- 855 mm (33.7 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.00 litres (0.26 quarts)
- Fuel Capacity
- 20.00 litres (5.28 gallons)
- Overall Width
- 930 mm (36.6 inches)
- Overall Height
- 1,540 mm (60.6 inches)
- Power Weight Ratio
- 0.5685 HP/kg
- Alternate Seat Height
- 855 mm (33.7 inches) If adjustable, highest setting.
- Rake
- 23.2°
- Seat
- Heated rider and passenger seat
- Trail
- 100 mm (3.9 inches)
- Wheels
- Cast aluminium alloy 10-spoke
- Rear Tyre
- 170/60-R17
- Frame Type
- Tubular
- steel trellis frame.
- Single
- -sided, cast aluminium alloy swing arm with shaft drive.
- Front Tyre
- 120/70-R19
- Rear Brakes
- Single
- disc.
- Nissin
- 2-piston sliding caliper,
- Front Brakes
- Double
- disc.
- Floating
- discs, radially mounted monobloc
- Brembo
- calipers, 4-piston, switchable
- Rear Suspension
- WP monoshock, electronically adjustable semi active damping,
- Front Suspension
- WP 48 mm upside down forks, electronically adjustable damping,
- Rear Wheel Travel
- 193 mm (7.6 inches)
- Front Wheel Travel
- 190 mm (7.5 inches)
- Rear Brakes Diameter
- 282 mm (11.1 inches)
- Front Brakes Diameter
- 305 mm (12.0 inches)
Available colors
Graywhite
