2016Super Moto

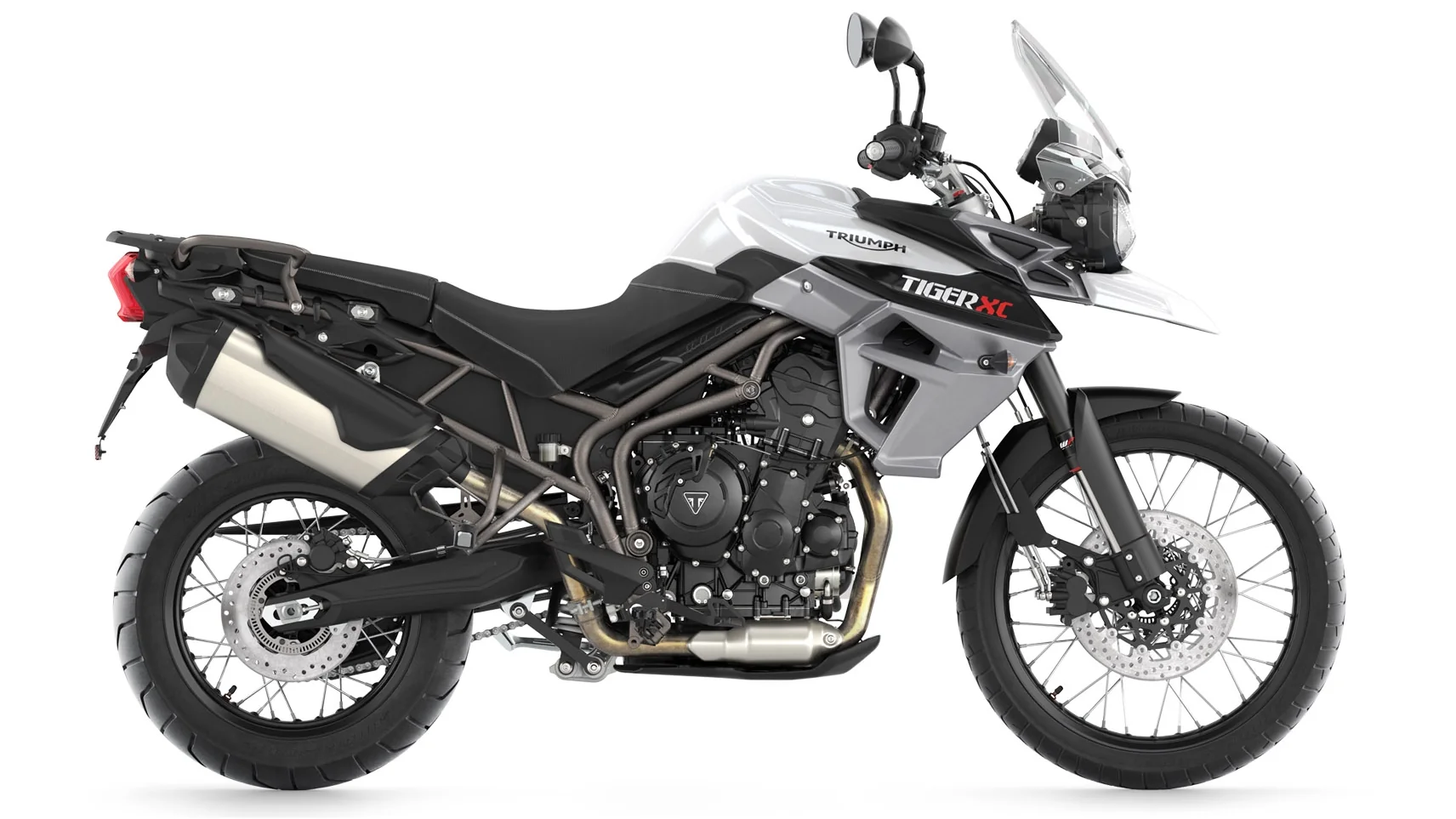

Triumph Tiger 800 XC
$12,500
Key specifications
Engine
799 cc
Power
95 HP
Torque
79 Nm
Weight
193 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
6-speed
Seat height
33 mm
Front brakes
Double disc. Floating discs, Nissin 2-piston sliding calipers, Switchable ABS.
Rear brakes
Single disc. Nissin single piston sliding caliper, Switchable ABS.
Technical details
Source specification data
- Make
- Triumph
- Model
- Tiger 800 XC
- Price
- S
- $ 12500.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Super motard
- Starter
- Electric
- Comments
- Small windscreen. Traction control.
- Instruments
- D
- multi-functional instrument pack with digital speedometer, trip computer, analogue tachometer, gear position indicator, fuel gauge, service indicator, switchable
- S
- and clock
- Color Options
- Phantom Black, Crystal White
- Factory Warranty
- 12 month unlimited mileage
- Carrying Capacity
- Top box, saddle bags
- Power
- 95.00 HP (69.3 kW)) @ 9250 RPM
- Clutch
- Wet. multi-plate
- Torque
- 79.00 Nm (8.1 kgf-m or 58.3 ft.lbs) @ 7850 RPM
- Gearbox
- 6-speed
- Driveline
- O ring chain
- Fuel System
- Injection
- .
- Multipoint
- sequential electronic fuel injection
- Bore X Stroke
- 74.0 x 61.9 mm (2.9 x 2.4 inches)
- Compression
- 11.3:1
- Displacement
- 799.00 ccm (48.75 cubic inches)
- Cooling System
- Liquid
- Engine Details
- In-line three, four-stroke
- Exhaust System
- Stainless steel 3 into 1. high level stainless steel silencer
- Fuel Consumption
- 5.74 litres/100 km (17.4 km/l or 40.98 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 193.0 kg (425.5 pounds)
- Seat Height
- 840 mm (33.1 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.70 litres (0.24 quarts)
- Fuel Capacity
- 19.00 litres (5.02 gallons)
- Overall Width
- 865 mm (34.1 inches)
- Overall Height
- 1,390 mm (54.7 inches)
- Overall Length
- 2,215 mm (87.2 inches)
- Power Weight Ratio
- 0.4922 HP/kg
- Alternate Seat Height
- 860 mm (33.9 inches) If adjustable, highest setting.
- Weight Incl Oil Gas Etc
- 215.0 kg (474.0 pounds)
- Rake
- 24.3°
- Trail
- 95 mm (3.8 inches)
- Wheels
- Wire spoked, aluminium rim
- Rear Tyre
- 150/70-17
- Frame Type
- Tubular
- steel trellis.
- Twin
- -sided, cast aluminium alloy swingarm.
- Front Tyre
- 90/90-21
- Rear Brakes
- Single
- disc.
- Nissin
- single piston sliding caliper,
- S
- .
- Front Brakes
- Double
- disc.
- Floating
- discs,
- Nissin
- 2-piston sliding calipers,
- S
- .
- Rear Suspension
- WP monoshock with remote oil reservoir, hydraulically adjustable preload, rebound damping adjustment
- Front Suspension
- WP 43 mm upside down forks, adjustable rebound and compression damping
- Rear Wheel Travel
- 215 mm (8.5 inches)
- Front Wheel Travel
- 220 mm (8.7 inches)
- Rear Brakes Diameter
- 255 mm (10.0 inches)
- Front Brakes Diameter
- 308 mm (12.1 inches)
Available colors
Phantom BlackCrystal White
