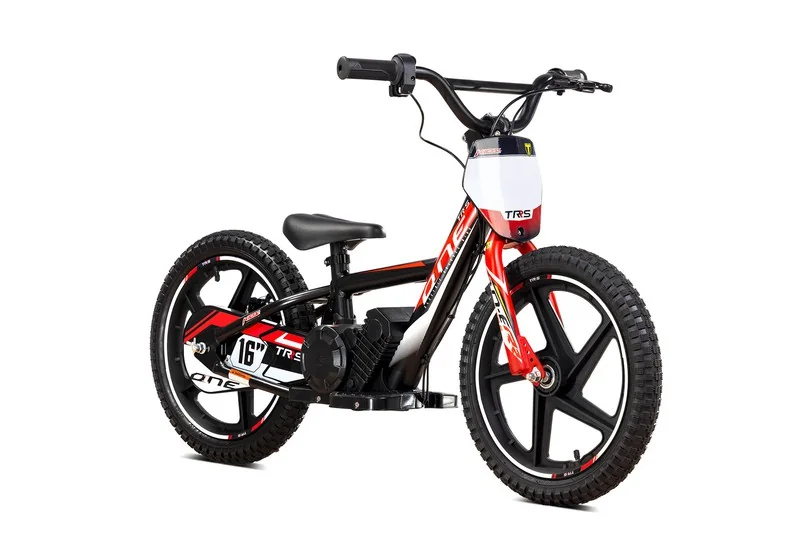

TRS On-E Balance 16
2024Minibike

TRS On-E Balance 16

Key specifications

Torque
10 Nm
Weight
12 kg
Fuel type
electric
Transmission
3-speed
Seat height
18 mm
Front brakes
Single disc
Rear brakes
Single disc

Technical details

Source specification data

Make
TRS
Model
On-E Balance 16
Category
Minibike-cross
Starter
Electric
Comments
Spanish
brand.
Lithium
-ion 24
V
5.2
Ah
battery.
Operating
time up to 60 minutes.
Intended
for children.
Adjustable
speed, power and response.
Color Options
Red/white/black
Torque
9.5 Nm (1.0 kgf-m or 7.0 ft.lbs)
Gearbox
3-speed
Top Speed
25.0 km/h (15.5 mph)
Engine Type
Electric
Cooling System
Liquid
Transmission Type Final Drive
Chain (final drive)
Dry Weight
11.5 kg (25.4 pounds)
Seat Height
450 mm (17.7 inches) If adjustable, lowest setting.
Overall Width
780 mm (30.7 inches)
Overall Height
695 mm (27.4 inches)
Overall Length
1180 mm (46.5 inches)
Ground Clearance
135 mm (5.3 inches)
Power Weight Ratio
0.0296 HP/kg
Alternate Seat Height
550 mm (21.7 inches) If adjustable, highest setting.
Wheels
Rebel Xbike trial tires.
Rear Tyre
2.4-16
Frame Type
Aluminum alloy
Front Tyre
2.4-16
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Progressive linkage
Front Suspension
Telescopic steel fork
Rear Wheel Travel
90 mm (3.5 inches)
Front Wheel Travel
100 mm (3.9 inches)
Rear Brakes Diameter
160 mm (6.3 inches)
Front Brakes Diameter
160 mm (6.3 inches)

Available colors

Red/white/black
