Back to Bike FinderYears: 2024
2024Other

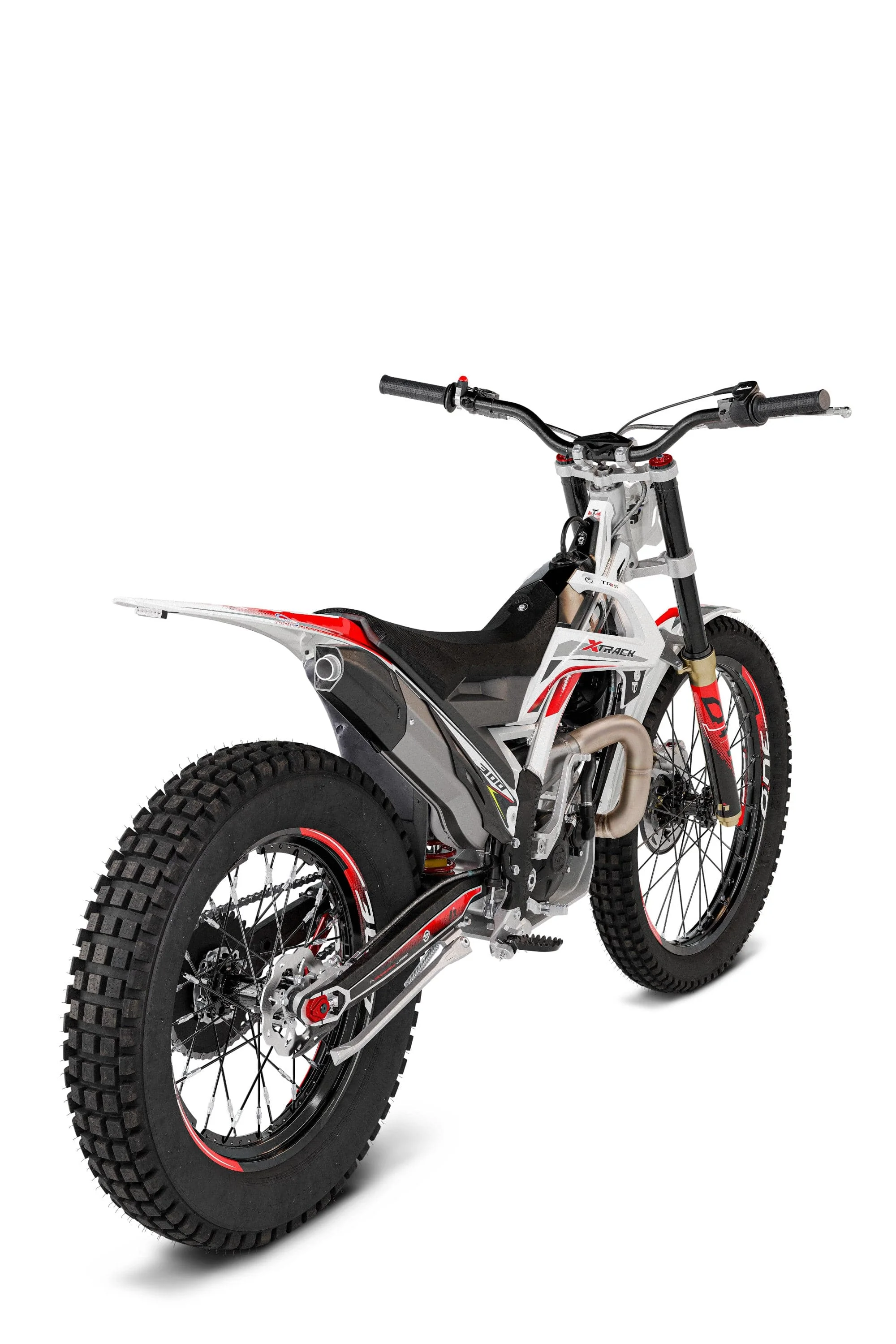

TRS XTrack One 125
Key specifications
Engine
125 cc
Weight
65 kg
Fuel type
petrol
Fuel capacity
0.7 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc. Galfer 4-piston caliper
Rear brakes
Single disc. Galfer 2-piston caliper
Technical details
Source specification data
- Make
- TRS
- Model
- XTrack One 125
- Category
- Trial
- Starter
- Kick
- Comments
- Spanish brand.
- Color Options
- Yellow/white/black
- Clutch
- 3-disc system
- Gearbox
- 5-speed
- Ignition
- HIDRIA double spark ignition CDI
- Engine Type
- Single cylinder, two-stroke
- Fuel System
- Carburettor. Dell´Orto
- Bore X Stroke
- 54.0 x 54.6 mm (2.1 x 2.1 inches)
- Displacement
- 125.0 ccm (7.63 cubic inches)
- Cooling System
- Liquid
- Lubrication System
- 1% oil mixture
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 65.0 kg (143.3 pounds)
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 0.40 litres (0.42 US quarts)
- Fuel Capacity
- 2.50 litres (0.66 US gallons)
- Overall Width
- 830 mm (32.7 inches)
- Overall Height
- 1125 mm (44.3 inches)
- Overall Length
- 2015 mm (79.3 inches)
- Wheels
- Morad aluminium
- Rear Tyre
- 4.00-18
- Frame Type
- Double cradle forged aluminium
- Front Tyre
- 2.75-21
- Rear Brakes
- Single disc. Galfer 2-piston caliper
- Front Brakes
- Single disc. Galfer 4-piston caliper
- Rear Suspension
- Progressive R16V hydraulic system
- Front Suspension
- TECH with aluminium bar Ø 39
- Rear Wheel Travel
- 168 mm (6.6 inches)
- Front Wheel Travel
- 175 mm (6.9 inches)
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 185 mm (7.3 inches)
Available colors
Yellow/white/black
