Back to Bike FinderYears: 2012
2012Sportbike

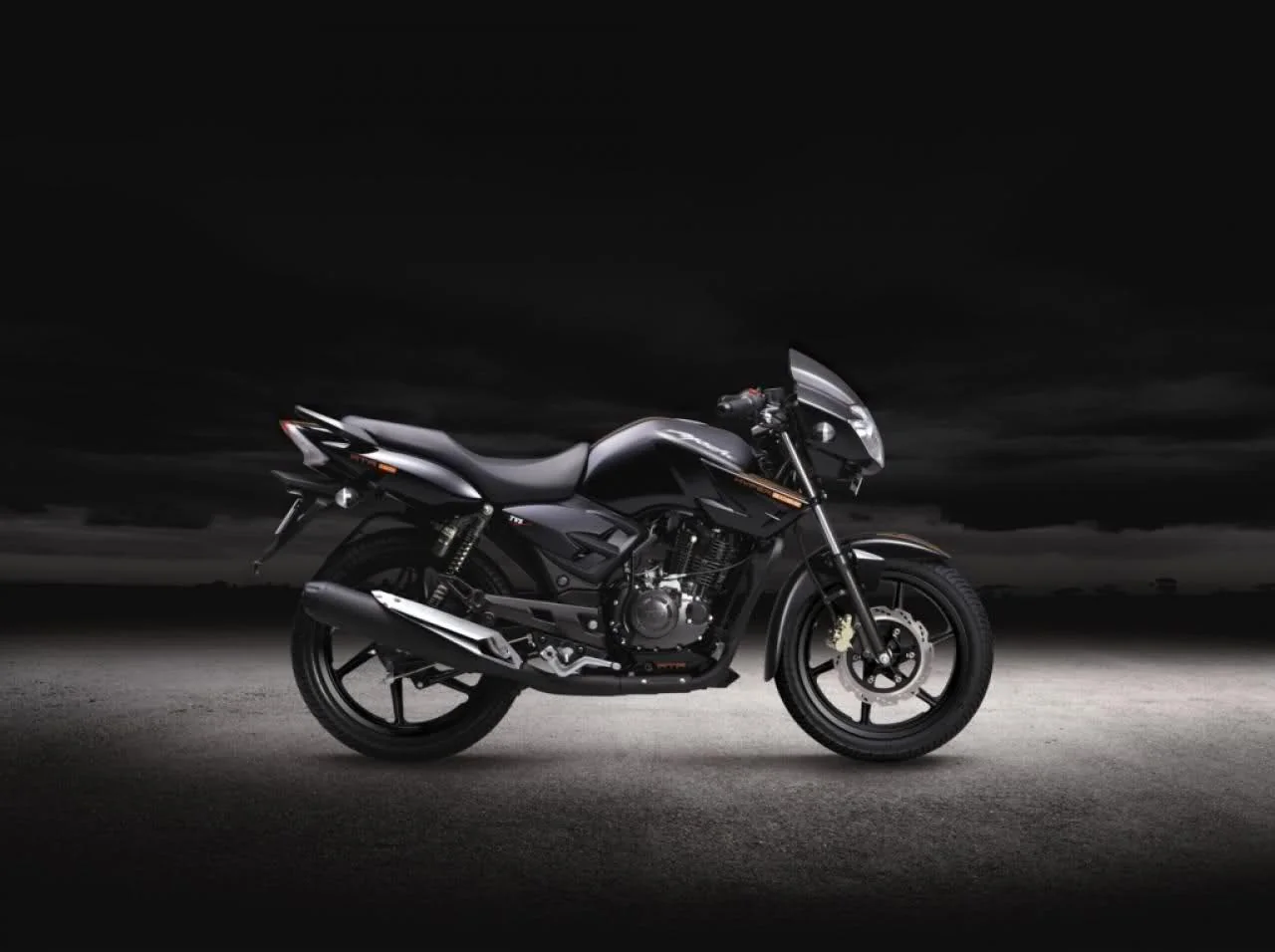

TVS Apache RTR 160 Hyper Edge
Key specifications
Engine
160 cc
Power
15 HP
Torque
13 Nm
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc. Petal disk
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Apache RTR 160 Hyper Edge
- Category
- Sport
- Starter
- Electric & kick
- Comments
- Made in India.
- Color Options
- Black
- Power
- 15.01 HP (11.0 kW)) @ 8500 RPM
- Clutch
- Wet, Multi-plate
- Torque
- 13.10 Nm (1.3 kgf-m or 9.7 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- IDI-Dual mode digital ignition
- Fuel System
- Carburettor. Mikuni BS-26
- Bore X Stroke
- 62.0 x 52.9 mm (2.4 x 2.1 inches)
- Compression
- 9.5:1
- Displacement
- 159.70 ccm (9.74 cubic inches)
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 730 mm (28.7 inches)
- Overall Height
- 1,050 mm (41.3 inches)
- Overall Length
- 2,020 mm (79.5 inches)
- Ground Clearance
- 180 mm (7.1 inches)
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Weight Incl Oil Gas Etc
- 136.0 kg (299.8 pounds)
- Wheels
- Six spoke black rims
- Rear Tyre
- 100/80-18
- Frame Type
- Double cradle
- Front Tyre
- 90/90-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. Petal disk
- Rear Suspension
- Monotube inverted gas filled shochs with spring aid
- Front Suspension
- Telescopic fork
- Front Wheel Travel
- 105 mm (4.1 inches)
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
Available colors
Black
