Back to Bike FinderYears: 2016 · 2012
2012Sportbike

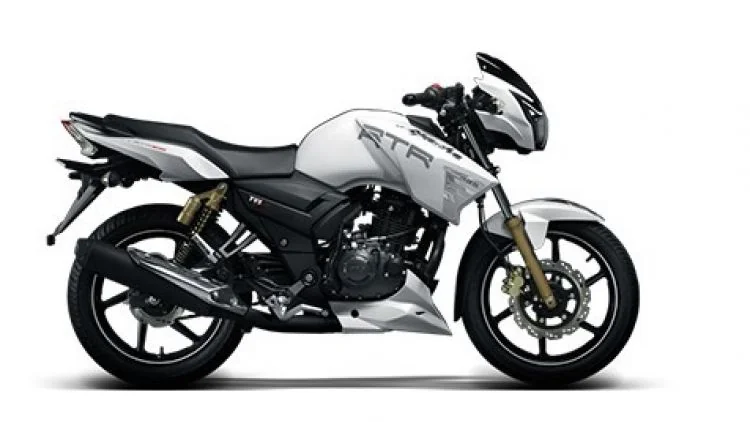

TVS Apache RTR 180 ABS
Key specifications
Engine
177 cc
Power
17 HP
Torque
16 Nm
Fuel type
petrol
Fuel capacity
4.2 L
Transmission
5-speed
Seat height
31 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Apache RTR 180 ABS
- Category
- Sport
- Light
- 35/35W Halogen HS1, Clear lens with MFR
- Starter
- Electric & kick
- Comments
- Made in India.
- Instruments
- Digital/analogue
- Color Options
- White/black
- Power
- 16.79 HP (12.3 kW)) @ 8500 RPM
- Clutch
- Wet, Multi-plate
- Torque
- 15.50 Nm (1.6 kgf-m or 11.4 ft.lbs) @ 6500 RPM
- Gearbox
- 5-speed
- Ignition
- IDI-Dual mode digital ignition
- Fuel System
- Carburettor. Mikuni BS-29
- Bore X Stroke
- 62.5 x 57.8 mm (2.5 x 2.3 inches)
- Compression
- 9.5:1
- Displacement
- 177.40 ccm (10.82 cubic inches)
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Seat Height
- 790 mm (31.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 16.00 litres (4.23 gallons)
- Overall Width
- 730 mm (28.7 inches)
- Overall Height
- 1,050 mm (41.3 inches)
- Overall Length
- 2,020 mm (79.5 inches)
- Ground Clearance
- 180 mm (7.1 inches)
- Reserve Fuel Capacity
- 1.70 litres (0.45 gallons)
- Wheels
- Six spoke black rims
- Rear Tyre
- 100/80-18
- Frame Type
- Double cradle
- Front Tyre
- 90/90-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Monotube inverted gas filled Shochs
- Front Suspension
- Telescopic fork
- Front Wheel Travel
- 105 mm (4.1 inches)
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
White/black
