2016Sportbike

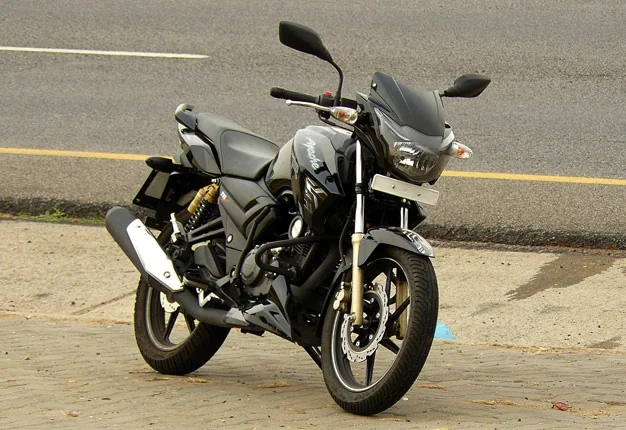

TVS Apache RTR 180
Key specifications
Engine
177 cc
Power
17 HP
Torque
16 Nm
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TVS
- Model
- Apache RTR 180
- Category
- Sport
- Starter
- Electric & kick
- Comments
- Made in India.
- Electrical
- 12V, 9Ah battery.
- Color Options
- Black, White, Grey, Silver
- Power
- 16.79 HP (12.3 kW)) @ 8500 RPM
- Clutch
- Wet multi-plate
- Torque
- 15.50 Nm (1.6 kgf-m or 11.4 ft.lbs) @ 6500 RPM
- Gearbox
- 5-speed
- Fuel System
- Carburettor. Ucal BS-29
- Bore X Stroke
- 62.5 x 57.8 mm (2.5 x 2.3 inches)
- Compression
- 9.5:1
- Displacement
- 177.40 ccm (10.82 cubic inches)
- Engine Details
- Single cylinder, four-stroke
- Zero To One Hundred
- 12.000 seconds
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Chain
- Seat Height
- 800 mm (31.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.00 litres (3.17 gallons)
- Overall Width
- 730 mm (28.7 inches)
- Overall Height
- 1,105 mm (43.5 inches)
- Overall Length
- 2,085 mm (82.1 inches)
- Ground Clearance
- 165 mm (6.5 inches)
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Weight Incl Oil Gas Etc
- 139.0 kg (306.4 pounds)
- Rear Tyre
- 110/80-17
- Front Tyre
- 110/80-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Monotube Inverted Gas
- -filled shox (
- G
- ) with spring aid
- Front Suspension
- Telescopic forks
- Rear Brakes Diameter
- 200 mm (7.9 inches)
- Front Brakes Diameter
- 270 mm (10.6 inches)
Available colors
BlackWhiteGreySilver
