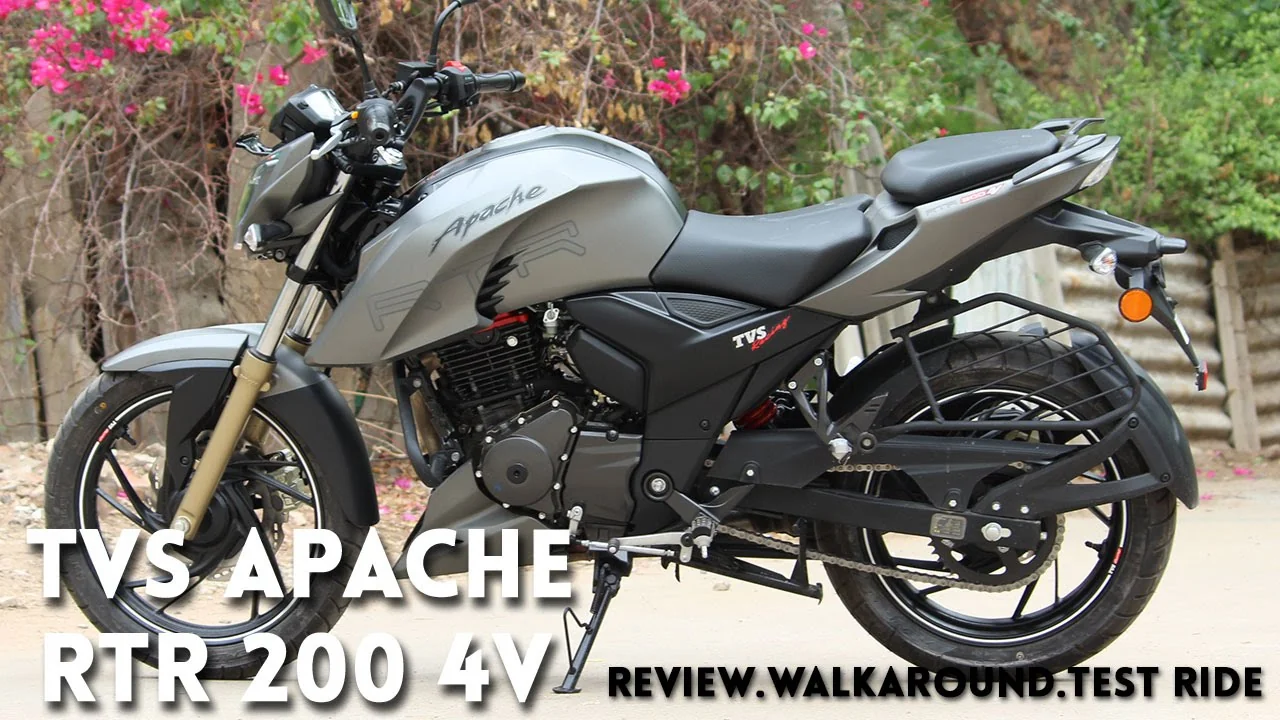

TVS Apache RTR 200 4V
2024Sportbike

TVS Apache RTR 200 4V

Key specifications

Torque
17 Nm
Weight
144 kg
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
5-speed
Seat height
32 mm
Front brakes
Single disc. ABS
Rear brakes
Single disc. ABS

Technical details

Source specification data

Make
TVS
Model
Apache RTR 200 4V
Category
Sport
Light
W
,
H4 Bulb
with
All
-
Starter
Electric
Comments
Three
ride modes.
Phone
connectivity.
Made
in
India
.
Electrical
12V, 9Ah battery.
Instruments
LCD instruments
Color Options
Matte Blue, Gloss Black, Pearl White
Factory Warranty
Type
Clutch
Wet multi plate- slipper clutch with 5 plate
Torque
17.3 Nm (1.8 kgf-m or 12.7 ft.lbs) @ 7250 RPM
Gearbox
5-speed
Ignition
IDI - Dual Mode Digital Ignition
Top Speed
127.0 km/h (78.9 mph)
Fuel System
Injection. Bosch closed loop
Bore X Stroke
66.0 x 57.8 mm (2.6 x 2.3 inches)
Compression
10.0:1
Cooling System
Oil & air
Exhaust System
Twin Pipe and Twin Barrel Design
Zero To One Hundred
12.00 seconds
Valves Per Cylinder
4
Transmission Type Final Drive
Chain (final drive)
Dry Weight
144.0 kg (317.5 pounds)
Seat Height
800 mm (31.5 inches) If adjustable, lowest setting.
Fuel Capacity
12.00 litres (3.17 US gallons)
Overall Width
790 mm (31.1 inches)
Overall Height
1050 mm (41.3 inches)
Overall Length
2020 mm (79.5 inches)
Ground Clearance
180 mm (7.1 inches)
Power Weight Ratio
0.1426 HP/kg
Reserve Fuel Capacity
2.50 litres (0.66 US gallons)
Weight Incl Oil Gas Etc
152.0 kg (335.1 pounds)
Wheels
Alloy rims, black
Rear Tyre
130/70-17
Frame Type
Double Cradle, Split Synchro Stiff
Front Tyre
90/90-17
Rear Brakes
Single disc. ABS
Front Brakes
Single disc. ABS
Rear Suspension
Mono Tube
-
Monoshock
,
Adjustable
with 3 step position
Front Suspension
Telescopic forks, adjustable
Rear Brakes Diameter
240 mm (9.4 inches)
Front Brakes Diameter
270 mm (10.6 inches)

Available colors

Matte BlueGloss BlackPearl White
