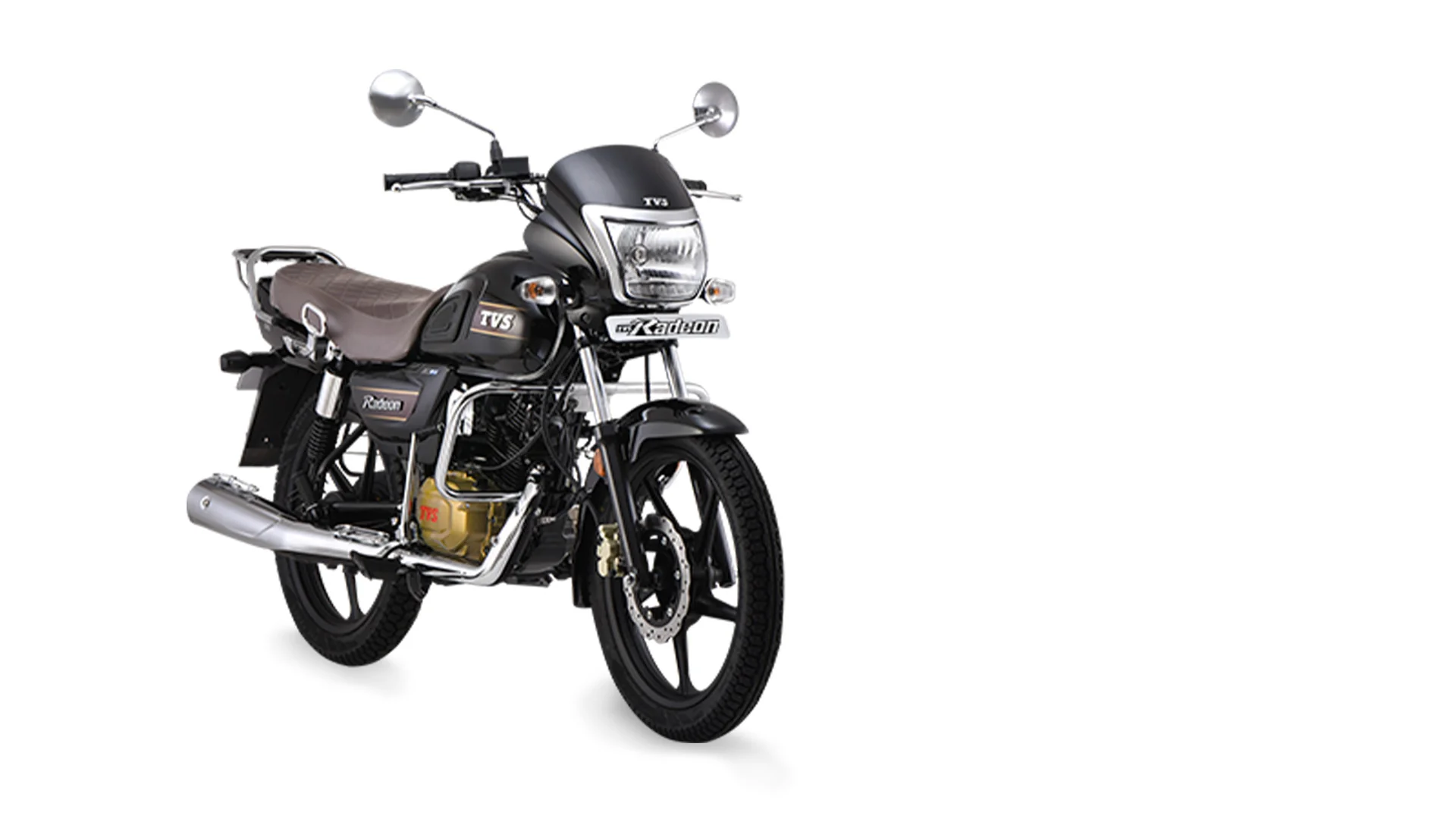

TVS Radeon

Key specifications

Engine

110 cc

Power

8 HP

Torque

9 Nm

Fuel type

petrol

Fuel capacity

2.6 L

Transmission

4-speed

Front brakes

Single disc. Combined braking system. Optional drum brake.

Rear brakes

Expanding brake (drum brake)

Technical details

Source specification data

Make: TVS
Model: Radeon
Category: Allround

Starter

Electric & kick

Comments

Made in India.

Electrical

12V 4Ah battery

Color Options

Chrome Purple: ,
Chrome Black: ,

Power: 8.1 HP (5.9 kW)) @ 7350 RPM
Clutch: Wet multi-plate
Torque: 8.7 Nm (0.9 kgf-m or 6.4 ft.lbs) @ 4500 RPM
Gearbox: 4-speed
Ignition: ECU
Engine Type: Single cylinder, four-stroke
Fuel System: Injection. Eco-Thrust Fuel Injection
Bore X Stroke: 53.5 x 48.8 mm (2.1 x 1.9 inches)
Compression: 10.0:1
Displacement: 109.7 ccm (6.69 cubic inches)
Transmission Type Final Drive: Chain (final drive)

Fuel Capacity: 10.00 litres (2.64 US gallons)
Overall Width: 705 mm (27.8 inches)
Overall Height: 1080 mm (42.5 inches)
Overall Length: 2025 mm (79.7 inches)
Ground Clearance: 180 mm (7.1 inches)
Reserve Fuel Capacity: 1.50 litres (0.40 US gallons)
Weight Incl Oil Gas Etc: 116.0 kg (255.7 pounds)

Wheels

5-spoke alloy

Rear Tyre

3.00-18

Frame Type

Single cradle tubular

Front Tyre

2.75-18

Rear Brakes

Expanding brake (drum brake)

Front Brakes

Single: disc.
Combined: braking system.
Optional: drum brake.

Rear Suspension

Dual 5 step adjustable hydraulic

Front Suspension

Telescopic oil damped

Rear Brakes Diameter

110 mm (4.3 inches)

Front Brakes Diameter

249 mm (9.8 inches)

Available colors

Chrome PurpleChrome BlackChrome Brown
