2023Allround

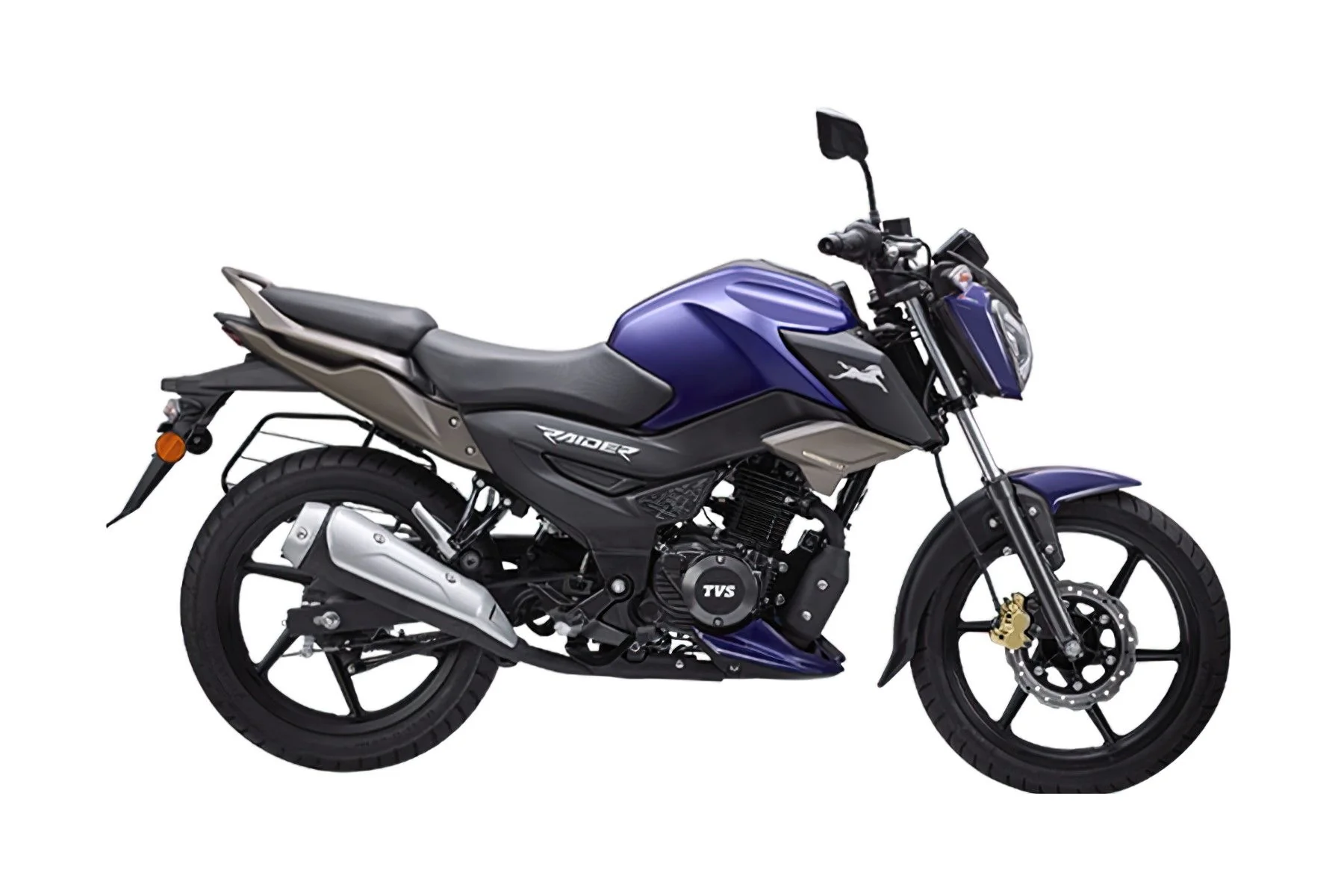

TVS Raider 125
Key specifications
Engine
125 cc
Power
11 HP
Torque
11 Nm
Fuel type
petrol
Fuel capacity
2.6 L
Transmission
5-speed
Front brakes
Single disc. Optional drum brake
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Raider 125
- Category
- Allround
- Light
- LED headlight
- Starter
- Electric & kick
- Comments
- Two ride modes. Sold in India.
- Electrical
- 12 Volt, 4 Ah battery
- Instruments
- LCD instruments
- Color Options
- Fiery Yellow
- ,
- Striking Red
- ,
- Striking Blue
- ,
- Carrying Capacity
- Underseat storage
- Power
- 11.2 HP (8.2 kW)) @ 7500 RPM
- Clutch
- Multiplate, wet
- Torque
- 11.2 Nm (1.1 kgf-m or 8.3 ft.lbs) @ 6000 RPM
- Gearbox
- 5-speed
- Ignition
- Digital Ignition
- Top Speed
- 95.0 km/h (59.0 mph)
- Engine Type
- Single cylinder, four-stroke
- Fuel System
- Carburettor
- Bore X Stroke
- 53.5 x 55.5 mm (2.1 x 2.2 inches)
- Displacement
- 124.8 ccm (7.62 cubic inches)
- Cooling System
- Oil & air
- Valves Per Cylinder
- 3
- Transmission Type Final Drive
- Chain (final drive)
- Oil Capacity
- 1.00 litres (1.06 US quarts)
- Fuel Capacity
- 10.00 litres (2.64 US gallons)
- Overall Width
- 785 mm (30.9 inches)
- Overall Height
- 1028 mm (40.5 inches)
- Overall Length
- 2070 mm (81.5 inches)
- Ground Clearance
- 180 mm (7.1 inches)
- Weight Incl Oil Gas Etc
- 123.0 kg (271.2 pounds)
- Wheels
- Mag alloy
- Rear Tyre
- 100/90-17
- Front Tyre
- 80/100-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc. Optional drum brake
- Rear Suspension
- Monoshock, 5 step adj, Gas charged
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 105 mm (4.1 inches)
- Front Wheel Travel
- 125 mm (4.9 inches)
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 240 mm (9.4 inches)
Available colors
Fiery YellowStriking RedStriking BlueWicked Black
