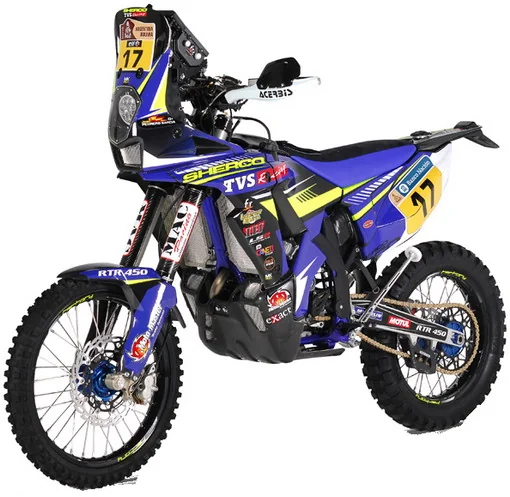

TVS RTR 450 AT Dakar
Key specifications
Weight
135 kg
Fuel type
petrol
Fuel capacity
8.5 L
Transmission
6-speed
Seat height
38 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- TVS
- Model
- RTR 450 AT Dakar
- Category
- Cross-motocross
- Starter
- Electric
- Comments
- Made in cooperation with Sherco.
- Electrical
- 12 V / 4Ah Super Battery battery.
- Color Options
- Blue/white
- Clutch
- Hydraulic, multidisc in oil bath
- Gearbox
- 6-speed
- Ignition
- Alternator 220 W
- Fuel System
- Injection
- .
- Synerject
- digital electronic fuel injection
- Bore X Stroke
- 95.0 x 63.5 mm (3.7 x 2.5 inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- Akrapovic titanium header pipe, titanium muffler
- Transmission Type Final Drive
- Chain
- Dry Weight
- 135.0 kg (297.6 pounds)
- Seat Height
- 970 mm (38.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 32.00 litres (8.45 gallons)
- Ground Clearance
- 355 mm (14.0 inches)
- Rear Tyre
- 140/80-18
- Frame Type
- Half perimeter frame chrome - Molybdenum
- Front Tyre
- 90/90-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- P
- progressive, multiadjutable
- Trax
- rear shock utilizing a linkage and rod system
- Front Suspension
- WP telescopic fork, 52 mm (2.05 in) tubes rebound and compression adjustable
- Rear Wheel Travel
- 300 mm (11.8 inches)
- Front Wheel Travel
- 300 mm (11.8 inches)
Available colors
Blue/white
