2009Allround

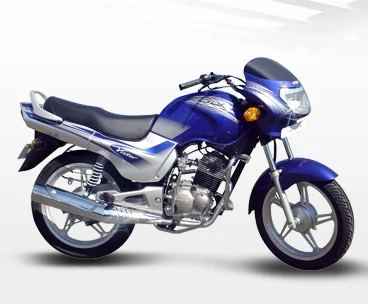

TVS Victor GLX
Key specifications
Engine
125 cc
Power
10 HP
Torque
10 Nm
Weight
113 kg
Fuel type
petrol
Fuel capacity
3.4 L
Transmission
4-speed
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Victor GLX
- Category
- Allround
- Starter
- Kick
- Power
- 9.60 HP (7.0 kW)) @ 7500 RPM
- Clutch
- wet multi plate
- Torque
- 9.50 Nm (1.0 kgf-m or 7.0 ft.lbs) @ 5500 RPM
- Gearbox
- 4-speed
- Ignition
- Kick start
- Top Speed
- 100.0 km/h (62.1 mph)
- Fuel System
- Carburettor
- Bore X Stroke
- 54.5 x 53.5 mm (2.1 x 2.1 inches)
- Compression
- 9.2:1
- Displacement
- 124.80 ccm (7.62 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Exhaust System
- single pipe with silencer
- Fuel Consumption
- 1.90 litres/100 km (52.6 km/l or 123.80 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Wet sump
- Transmission Type Final Drive
- Chain
- Dry Weight
- 113.0 kg (249.1 pounds)
- Oil Capacity
- 0.90 litres (0.06 quarts)
- Fuel Capacity
- 13.00 litres (3.43 gallons)
- Overall Width
- 710 mm (28.0 inches)
- Overall Height
- 1,145 mm (45.1 inches)
- Overall Length
- 2,015 mm (79.3 inches)
- Ground Clearance
- 190 mm (7.5 inches)
- Power Weight Ratio
- 0.0850 HP/kg
- Reserve Fuel Capacity
- 2.50 litres (0.66 gallons)
- Rake
- 26.0°
- Trail
- 95 mm (3.7 inches)
- Rear Tyre
- 3/18-6
- Frame Type
- Monotubular open with engine as stressed member
- Front Tyre
- 3/18-4
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- 5 step hydraulic triple rated spring
- Front Suspension
- Telescopic oil damped
- Rear Brakes Diameter
- 130 mm (5.1 inches)
- Front Brakes Diameter
- 130 mm (5.1 inches)
