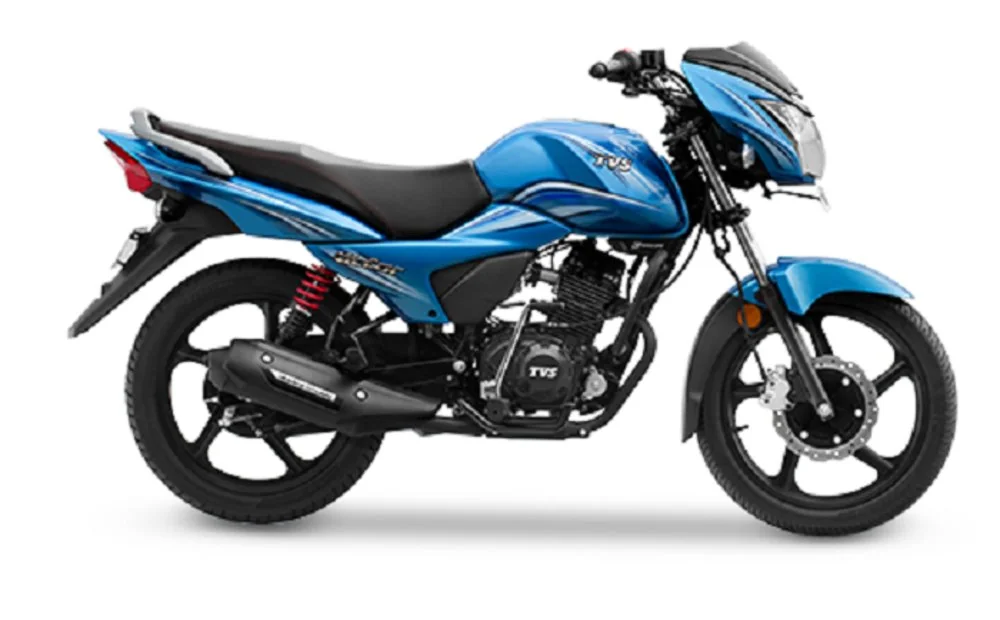

TVS Victor
Key specifications
Engine
110 cc
Power
9 HP
Torque
9 Nm
Fuel type
petrol
Transmission
4-speed
Front brakes
Expanding brake (drum brake). Optional disc brake
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- TVS
- Model
- Victor
- Category
- Allround
- Comments
- Made in India.
- Color Options
- Blue, red, silver, grey/black, black, white, pink/black
- Power
- 9.47 HP (6.9 kW)) @ 7500 RPM
- Clutch
- Wet - multi plate type
- Torque
- 9.40 Nm (1.0 kgf-m or 6.9 ft.lbs) @ 6000 RPM
- Gearbox
- 4-speed
- Fuel System
- Carburettor. CV type
- Bore X Stroke
- 53.5 x 48.8 mm (2.1 x 1.9 inches)
- Compression
- 9.9:1
- Displacement
- 109.70 ccm (6.69 cubic inches)
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Overall Width
- 750 mm (29.5 inches)
- Overall Height
- 1,090 mm (42.9 inches)
- Overall Length
- 1,980 mm (78.0 inches)
- Ground Clearance
- 175 mm (6.9 inches)
- Reserve Fuel Capacity
- 2.00 litres (0.53 gallons)
- Weight Incl Oil Gas Etc
- 112.0 kg (246.9 pounds)
- Rear Tyre
- 3.50-17
- Frame Type
- Single cradle tubular frame.
- Front Tyre
- 2.75-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding
- brake (drum brake).
- Optional
- disc brake
- Rear Suspension
- 5 step adjustable hydraulic series spring suspension
- Front Suspension
- Telescopic oil damped
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 130 mm (5.1 inches)
Available colors
Blueredsilvergrey/blackblackwhitepink/black
