Back to Bike FinderYears: 2006

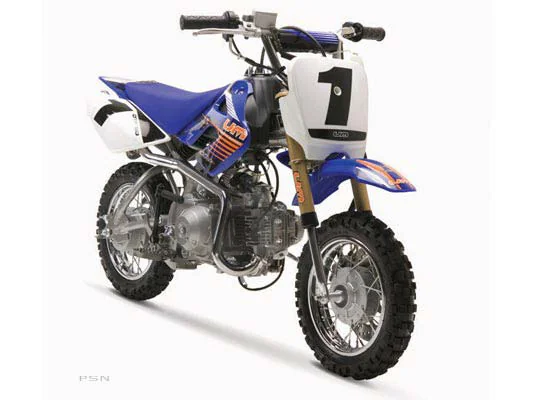

2006Minibike
UM DTF 50
Key specifications
Engine
49 cc
Weight
54 kg
Fuel type
petrol
Fuel capacity
0.8 L
Transmission
3-speed
Seat height
22 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- UM
- Model
- DTF 50
- Category
- Minibike-cross
- Starter
- Electric & kick
- Comments
- Intended for children.
- Clutch
- Automatic
- Gearbox
- 3-speed
- Fuel System
- Carburettor
- Bore X Stroke
- 39.0 x 41.4 mm (1.5 x 1.6 inches)
- Compression
- 8.8:1
- Displacement
- 49.00 ccm (2.99 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 54.0 kg (119.0 pounds)
- Seat Height
- 559 mm (22.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 3.10 litres (0.82 gallons)
- Overall Length
- 1,372 mm (54.0 inches)
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Single shocks
- Front Suspension
- Inverted telescopic fork
- Front Brakes Diameter
- 183 mm (7.2 inches)
