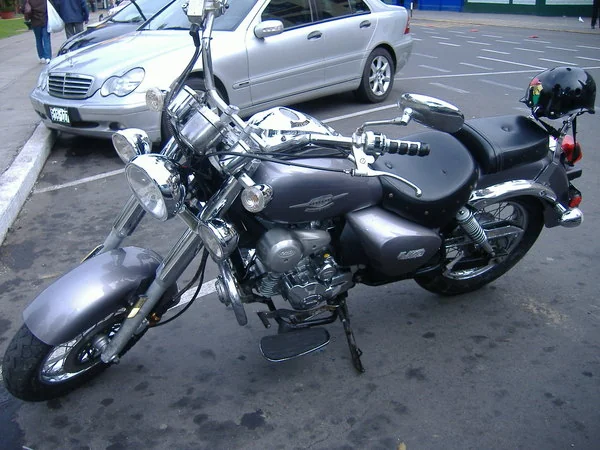

UM Renegade 200 LE
Key specifications
Engine
196 cc
Weight
140 kg
Fuel type
petrol
Fuel capacity
3.3 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- UM
- Model
- Renegade 200 LE
- Category
- Custom-cruiser
- Starter
- Electric & kick
- Color Options
- Black, Blue, Gray, Red, Titanium
- Gearbox
- 5-speed
- Ignition
- CDI
- Fuel System
- Carburettor
- Bore X Stroke
- 69.0 x 55.0 mm (2.7 x 2.2 inches)
- Compression
- 9.2:1
- Displacement
- 196.00 ccm (11.96 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 140.0 kg (308.6 pounds)
- Seat Height
- 685 mm (27.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.30 litres (3.25 gallons)
- Overall Height
- 1,000 mm (39.4 inches)
- Overall Length
- 2,310 mm (90.9 inches)
- Rear Tyre
- 130/90-15
- Front Tyre
- 110/90-16
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Swingarm with double oil shock
- Front Suspension
- Telescopic fork
Available colors
BlackBlueGrayRedTitanium
