Back to Bike FinderYears: 2010
2010Allround

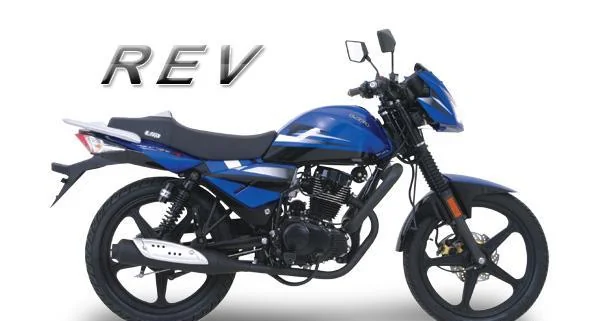

UM REV 125
Key specifications
Engine
125 cc
Weight
113 kg
Fuel type
petrol
Fuel capacity
3.7 L
Transmission
5-speed
Seat height
35 mm
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- UM
- Model
- REV 125
- Category
- Allround
- Starter
- Electric & kick
- Color Options
- Black, blue, red, silver
- Gearbox
- 5-speed
- Ignition
- CDI
- Fuel System
- Carburettor
- Bore X Stroke
- 56.0 x 49.5 mm (2.2 x 1.9 inches)
- Compression
- 9.0:1
- Displacement
- 125.00 ccm (7.63 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 113.0 kg (249.1 pounds)
- Seat Height
- 890 mm (35.0 inches) If adjustable, lowest setting.
- Fuel Capacity
- 14.00 litres (3.70 gallons)
- Overall Width
- 740 mm (29.1 inches)
- Overall Height
- 1,170 mm (46.1 inches)
- Overall Length
- 2,030 mm (79.9 inches)
- Rear Tyre
- 90/90-18
- Front Tyre
- 110/70-17
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Swingarm with dual spring shock absorbers
- Front Suspension
- Telescopic fork
Available colors
Blackblueredsilver
