Back to Bike FinderYears: 2012
2012Classic

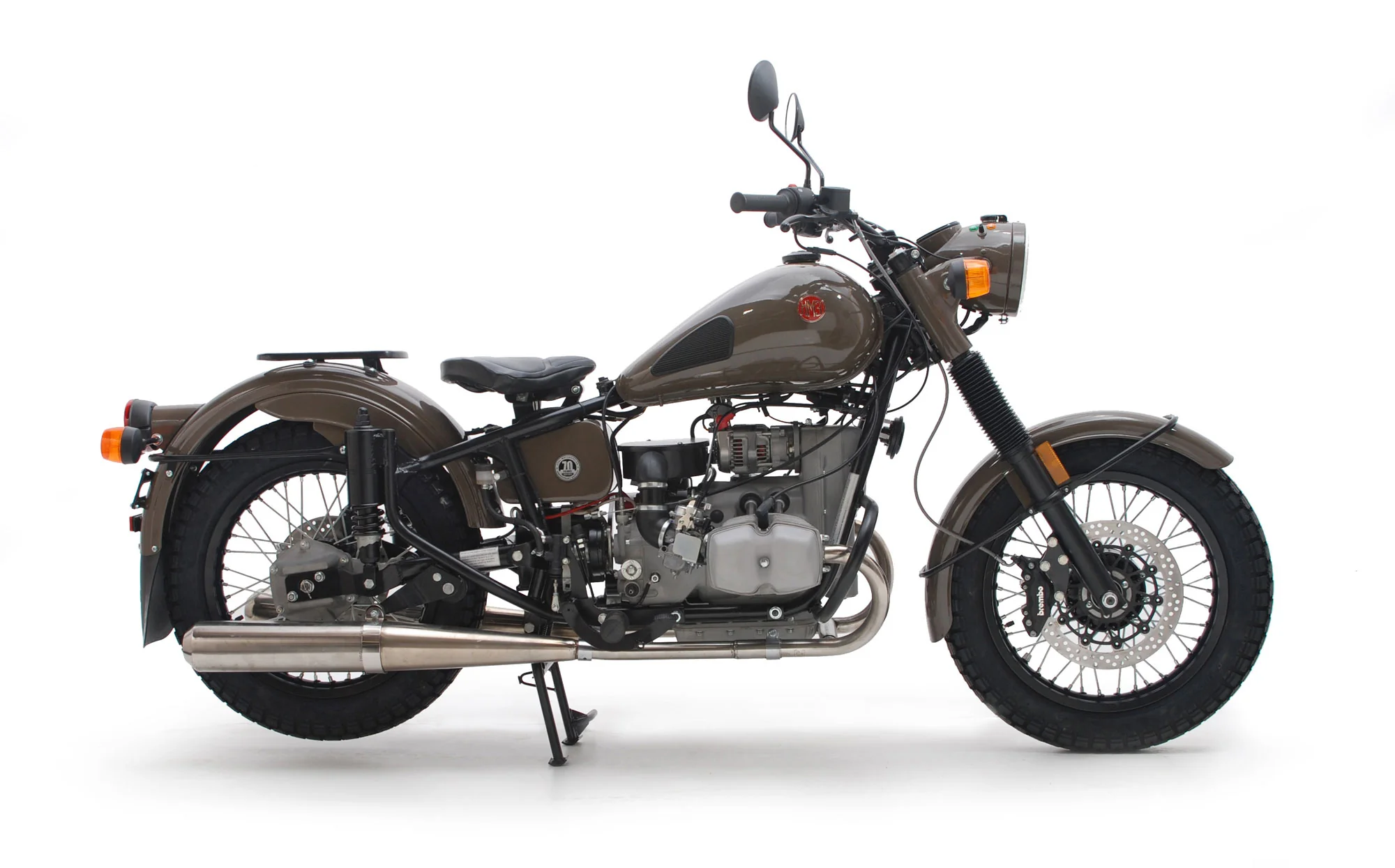

Ural M70 Anniversary Edition
$14,200
Key specifications
Engine
749 cc
Power
40 HP
Torque
52 Nm
Weight
325 kg
Fuel type
petrol
Fuel capacity
5.8 L
Transmission
4-speed
Seat height
30 mm
Front brakes
Single disc. Bremo, 4 piston with floating rotor
Rear brakes
Expanding brake (drum brake). Mechanically actuated drumbrakes at rear and sidecar wheel.
Technical details
Source specification data
- Make
- Ural
- Model
- M70 Anniversary Edition
- Price
- S
- $ 14200.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Classic
- Starter
- Electric & kick
- Comments
- On
- 19th of
- November
- 1941 the first echelons with the manufacturing equipment pulled up to
- Irbit
- , a distant outpost on the eastern slopes of the
- Ural Mountains
- .
- Merely
- a month after the decision was made to evacuate the
- Moscow
- motorcycle plant from the capital.
- Ahead
- were long years of the
- Second World War
- .
- Relocated
- factory was to produce motorcycles for the
- Army
- to fight fascists.
- Thus
- the story of the
- Irbit Motorcycle Factory (IMZ)
- began.
- The
- motorcycle was called
- M72
- .
- First
- units rolled off the production floor just a few months after the evacuation.
- Altogether
- approximately 9.500 motorcycles were built and in use throughout the war for mobile troops, reconnaissance detachments and to carry wounded.
- It
- was women and children in the distant
- Siberian
- factory labouring relentlessly to supply the
- Front
- with the motorcycles that defeated the enemy.
- Like
- the people who built it, the motorcycles were rugged, resilient, undefeatable.
- Could
- have they imagined that 70 years later this factory would remain the only sidecar manufacturer in the world and
- Ural
- would become a cult motorcycle¿
- Since
- 1941 over 3 million motorcycles have been produced by the
- Irbit Motorcycles Factory
- .
- On
- 19th of
- November
- 2011 we are celebrating the 70th anniversary of the
- Z
- -
- Ural
- factory and introduce
- Ural M70 Anniversary Edition
- .
- Electrical
- FAYTX20HL 12V, 20Amp/h battery.
- Color Options
- Olive
- Factory Warranty
- 2 years parts and labor, unlimited mileage
- Power
- 40.00 HP (29.2 kW)) @ 5600 RPM
- Clutch
- Dry, dual disk
- Torque
- 51.53 Nm (5.3 kgf-m or 38.0 ft.lbs) @ 4000 RPM
- Gearbox
- 4-speed
- Ignition
- Full electronic C.D.I.
- Top Speed
- 105.0 km/h (65.2 mph)
- Fuel System
- Carburettor. Twin Keihin L22 AA
- Bore X Stroke
- 78.0 x 78.0 mm (3.1 x 3.1 inches)
- Compression
- 8.6:1
- Displacement
- 749.00 ccm (45.70 cubic inches)
- Cooling System
- Air
- Engine Details
- Two cylinder boxer, four-stroke
- Transmission Type Final Drive
- Shaft drive (cardan)
- Dry Weight
- 325.0 kg (716.5 pounds)
- Seat Height
- 750 mm (29.5 inches) If adjustable, lowest setting.
- Fuel Capacity
- 22.00 litres (5.81 gallons)
- Overall Width
- 1,630 mm (64.2 inches)
- Overall Height
- 1,020 mm (40.2 inches)
- Overall Length
- 2,224 mm (87.6 inches)
- Ground Clearance
- 125 mm (4.9 inches)
- Power Weight Ratio
- 0.1231 HP/kg
- Reserve Fuel Capacity
- 3.03 litres (0.80 gallons)
- Rake
- 30.0°
- Wheels
- Front, rear, and sidecar 18in.
- Rear Tyre
- 3.50-18
- Frame Type
- Double loop steel tubular frame
- Front Tyre
- 3.50-18
- Rear Brakes
- Expanding
- brake (drum brake).
- Mechanically
- actuated drumbrakes at rear and sidecar wheel.
- Front Brakes
- Single
- disc.
- Bremo
- , 4 piston with floating rotor
- Rear Suspension
- Double
- sided swing-arm with two
- Sachs
- hydraulic spring shock absorbers, 5x adjustable
- Front Suspension
- 40mm Marzocchi telescopic forks
Available colors
Olive
