1944Allround

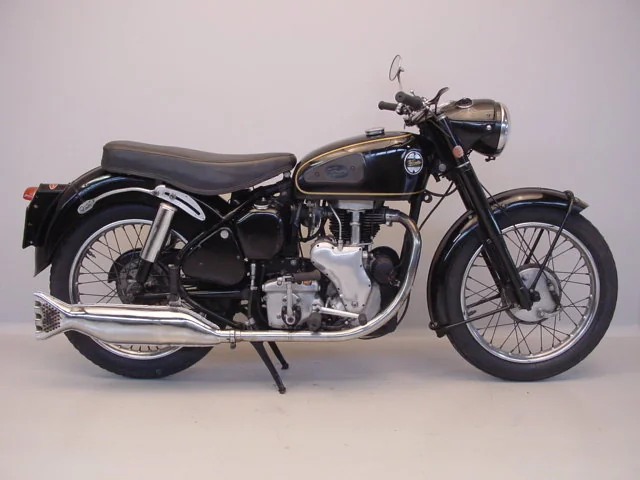

Velocette Mac
Key specifications
Engine
349 cc
Power
18 HP
Weight
161 kg
Fuel type
petrol
Fuel capacity
2.9 L
Transmission
4-speed
Seat height
28 mm
Front brakes
Expanding brake (drum brake)
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Velocette
- Model
- Mac
- Category
- Allround
- Starter
- Kick
- Power
- 18.00 HP (13.1 kW)) @ 5500 RPM
- Clutch
- Wet multiplate
- Gearbox
- 4-speed
- Top Speed
- 120.7 km/h (75.0 mph)
- Fuel System
- Carburettor
- Bore X Stroke
- 68.0 x 96.0 mm (2.7 x 3.8 inches)
- Compression
- 6.8:1
- Displacement
- 349.00 ccm (21.30 cubic inches)
- Cooling System
- Air
- Engine Details
- Twin, four-stroke
- Transmission Type Final Drive
- Chain
- Dry Weight
- 161.0 kg (354.9 pounds)
- Seat Height
- 700 mm (27.6 inches) If adjustable, lowest setting.
- Fuel Capacity
- 11.00 litres (2.91 gallons)
- Overall Width
- 700 mm (27.6 inches)
- Overall Height
- 990 mm (39.0 inches)
- Overall Length
- 2,130 mm (83.9 inches)
- Power Weight Ratio
- 0.1118 HP/kg
- Seat
- Dual seat
- Rear Tyre
- 3.50-19
- Frame Type
- Single cradle
- Front Tyre
- 3.25-19
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Expanding brake (drum brake)
- Rear Suspension
- Swingarm
- Front Suspension
- Hydralic telescopic forks
- Rear Brakes Diameter
- 152 mm (6.0 inches)
- Front Brakes Diameter
- 178 mm (7.0 inches)
