Back to Bike FinderYears: 2023
2023Off-road

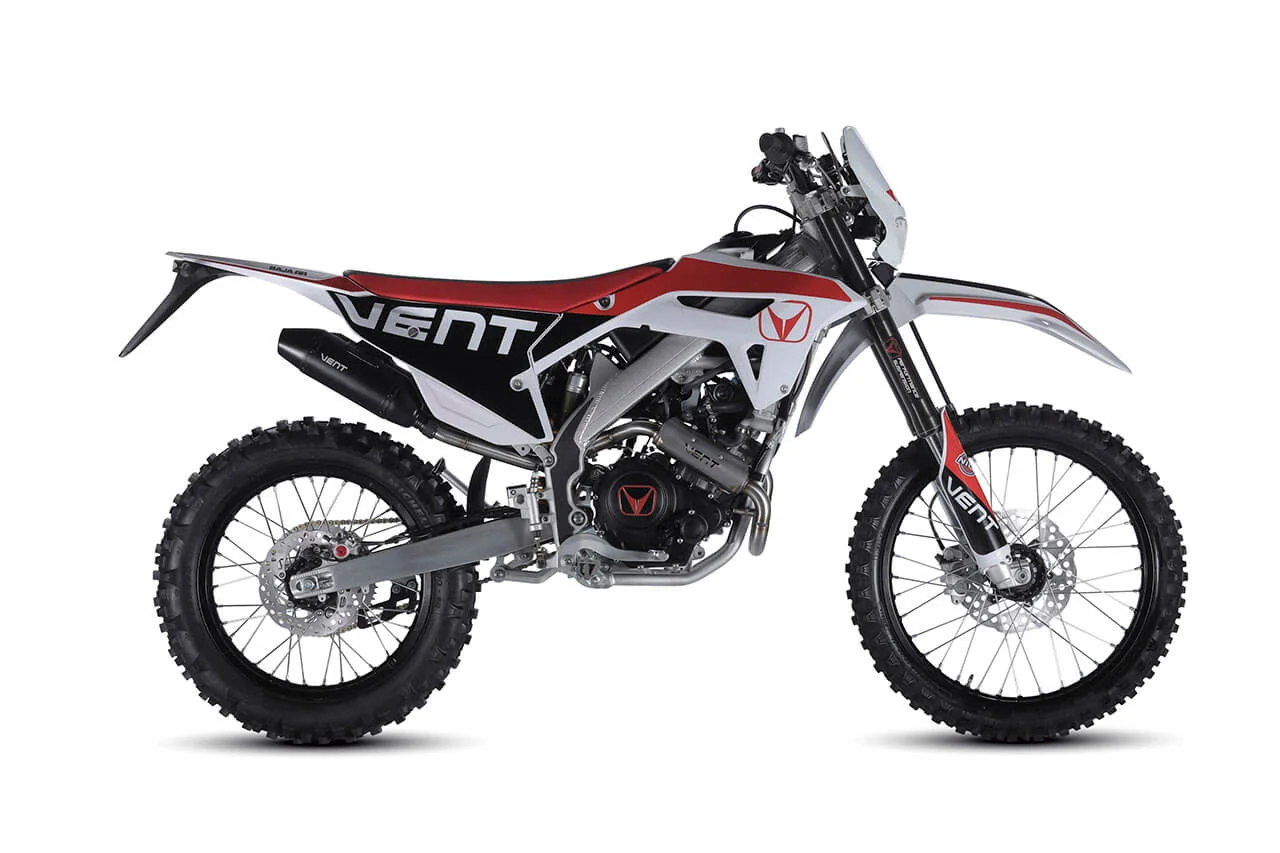

Vent Baja 125 RR 4T
Key specifications
Weight
105 kg
Fuel type
petrol
Fuel capacity
2.5 L
Transmission
6-speed
Seat height
34 mm
Front brakes
Single disc. Dual floating caliper. Wave disc.
Rear brakes
Single disc. Floating caliper. Wave disc.
Technical details
Source specification data
- Make
- Vent
- Model
- Baja 125 RR 4T
- Category
- Enduro-offroad
- Starter
- Electric
- Comments
- Made in Italy.
- Color Options
- Red/white, Red/black
- Clutch
- Oil bath, multiplate
- Gearbox
- 6-speed
- Fuel System
- Carburettor
- .
- K
- flat slide Ø 30mm
- Bore X Stroke
- 52.0 x 58.6 mm (2.0 x 2.3 inches)
- Cooling System
- Liquid
- Engine Details
- Minarelli engine, variable valve actuation
- Exhaust System
- Double silencer
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 105.0 kg (231.5 pounds)
- Seat Height
- 875 mm (34.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 9.50 litres (2.51 US gallons)
- Overall Width
- 800 mm (31.5 inches)
- Overall Height
- 1225 mm (48.2 inches)
- Overall Length
- 2160 mm (85.0 inches)
- Ground Clearance
- 283 mm (11.1 inches)
- Rear Tyre
- 120/80-18
- Frame Type
- Aluminium
- perimetral frame
- Vent
- 6.0, double cradle with removable rear part
- Front Tyre
- 90/90-21
- Rear Brakes
- Single
- disc.
- Floating
- caliper.
- Wave
- disc.
- Front Brakes
- Single
- disc.
- Dual
- floating caliper.
- Wave
- disc.
- Rear Suspension
- Hydraulic
- monoshock, spring preload, rebound and compression adjustable with separate gas tank and
- M
- -link 2.0 leverage
- Front Suspension
- USD Hydraulic 41 mm - R16V a
- Front Wheel Travel
- 260 mm (10.2 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 260 mm (10.2 inches)
Available colors
Red/whiteRed/black
