Back to Bike FinderYears: 2023 · 2020
2020Off-road

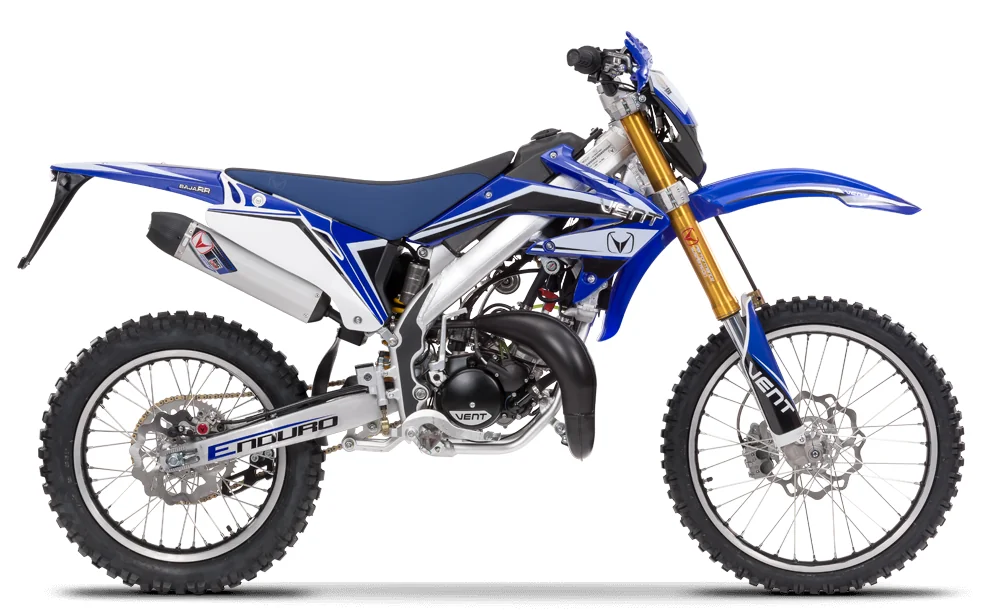

Vent Baja 50 RR
Key specifications
Engine
50 cc
Weight
83 kg
Fuel type
petrol
Fuel capacity
1.6 L
Transmission
6-speed
Seat height
35 mm
Front brakes
Single disc. Floating discs. Wave disc.
Rear brakes
Single disc. Floating disc. Wave disc.
Technical details
Source specification data
- Make
- Vent
- Model
- Baja 50 RR
- Category
- Enduro-offroad
- Starter
- Kick
- Comments
- Italian brand.
- Color Options
- Red, blue, green, white, yellow
- Clutch
- Oil bath, multiplate
- Gearbox
- 6-speed
- Fuel System
- Carburettor. Dell’Orto PHBN 16
- Bore X Stroke
- 40.3 x 39.0 mm (1.6 x 1.5 inches)
- Displacement
- 49.70 ccm (3.03 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Exhaust System
- Offroad single exhaust
- Transmission Type Final Drive
- Chain
- Dry Weight
- 82.5 kg (181.9 pounds)
- Seat Height
- 900 mm (35.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 6.00 litres (1.59 gallons)
- Overall Width
- 815 mm (32.1 inches)
- Overall Height
- 900 mm (35.4 inches)
- Overall Length
- 2,160 mm (85.0 inches)
- Ground Clearance
- 315 mm (12.4 inches)
- Reserve Fuel Capacity
- 1.50 litres (0.40 gallons)
- Rear Tyre
- 100/80-18
- Frame Type
- Semi-double cradle, aluminium twinspar
- Front Tyre
- 80/90-21
- Rear Brakes
- Single disc. Floating disc. Wave disc.
- Front Brakes
- Single
- disc.
- Floating
- discs.
- Wave
- disc.
- Rear Suspension
- Single
- shock absorber with
- M
- -link, adjustable preload and rebound with pressurizing sub-tank
- Front Suspension
- USD Hydraulic 41 mm - R16V
- Front Wheel Travel
- 260 mm (10.2 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 250 mm (9.8 inches)
Available colors
Redbluegreenwhiteyellow
