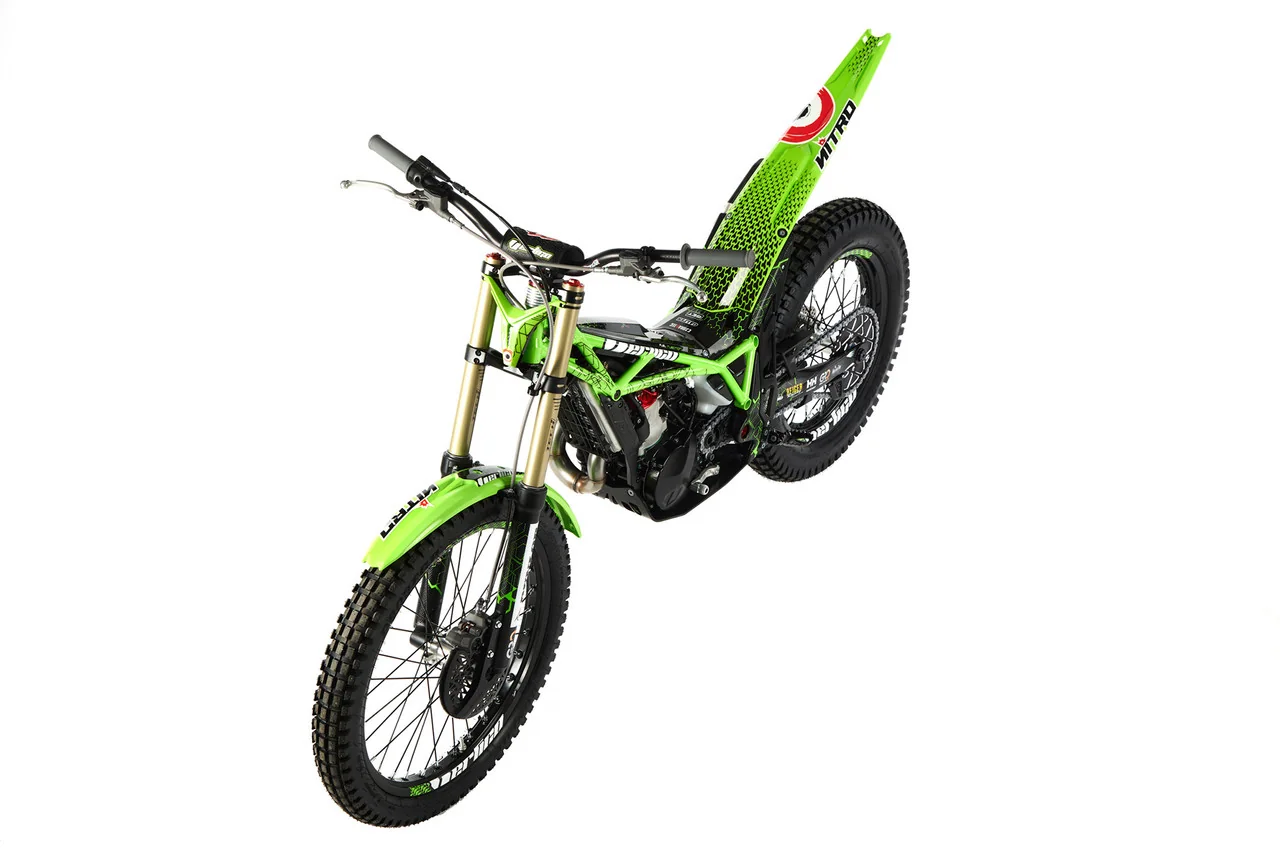

Vertigo Nitro 280
Key specifications
Engine
247 cc
Weight
68 kg
Fuel type
petrol
Fuel capacity
0.6 L
Transmission
6-speed
Seat height
27 mm
Front brakes
Single disc. 4-piston caliper
Rear brakes
Single disc. 2-piston caliper
Technical details
Source specification data
- Make
- Vertigo
- Model
- Nitro 280
- Category
- Trial
- Starter
- Kick
- Comments
- Atmospheric
- pressure and
- Air
- temperature sensors.
- High
- -strenght 7075
- Aluminium
- skid plate.
- Color Options
- Green/Black
- Clutch
- Multi-disc oil wet adjustable preload
- Gearbox
- 6-speed
- Driveline
- 10z/42
- Engine Type
- Single cylinder, two-stroke
- Fuel System
- Injection. Integrated injection driver.
- Bore X Stroke
- 76.0 x 60.0 mm (3.0 x 2.4 inches)
- Displacement
- 247.0 ccm (15.07 cubic inches)
- Cooling System
- Liquid
- Transmission Type Final Drive
- Chain (final drive)
- Dry Weight
- 68.0 kg (149.9 pounds)
- Seat Height
- 680 mm (26.8 inches) If adjustable, lowest setting.
- Fuel Capacity
- 2.30 litres (0.61 US gallons)
- Overall Length
- 2110 mm (83.1 inches)
- Wheels
- Black Morad
- rims.
- Vertigo
- red hubs.
- P
- tires
- Rear Tyre
- 2.15-18
- Frame Type
- 25CrMo4 steel , aluminium 6082 subframe
- Front Tyre
- 1.60-21
- Rear Brakes
- Single disc. 2-piston caliper
- Front Brakes
- Single disc. 4-piston caliper
- Rear Suspension
- Swingarm
- combined with
- R
- 2 way monoshock with compression, rebound and spring preload adjustment
- Front Suspension
- Tech Factory
- Rear Wheel Travel
- 170 mm (6.7 inches)
- Front Wheel Travel
- 170 mm (6.7 inches)
- Rear Brakes Diameter
- 150 mm (5.9 inches)
- Front Brakes Diameter
- 185 mm (7.3 inches)
Available colors
Green/Black
