Back to Bike FinderYears: 2021
2021Other

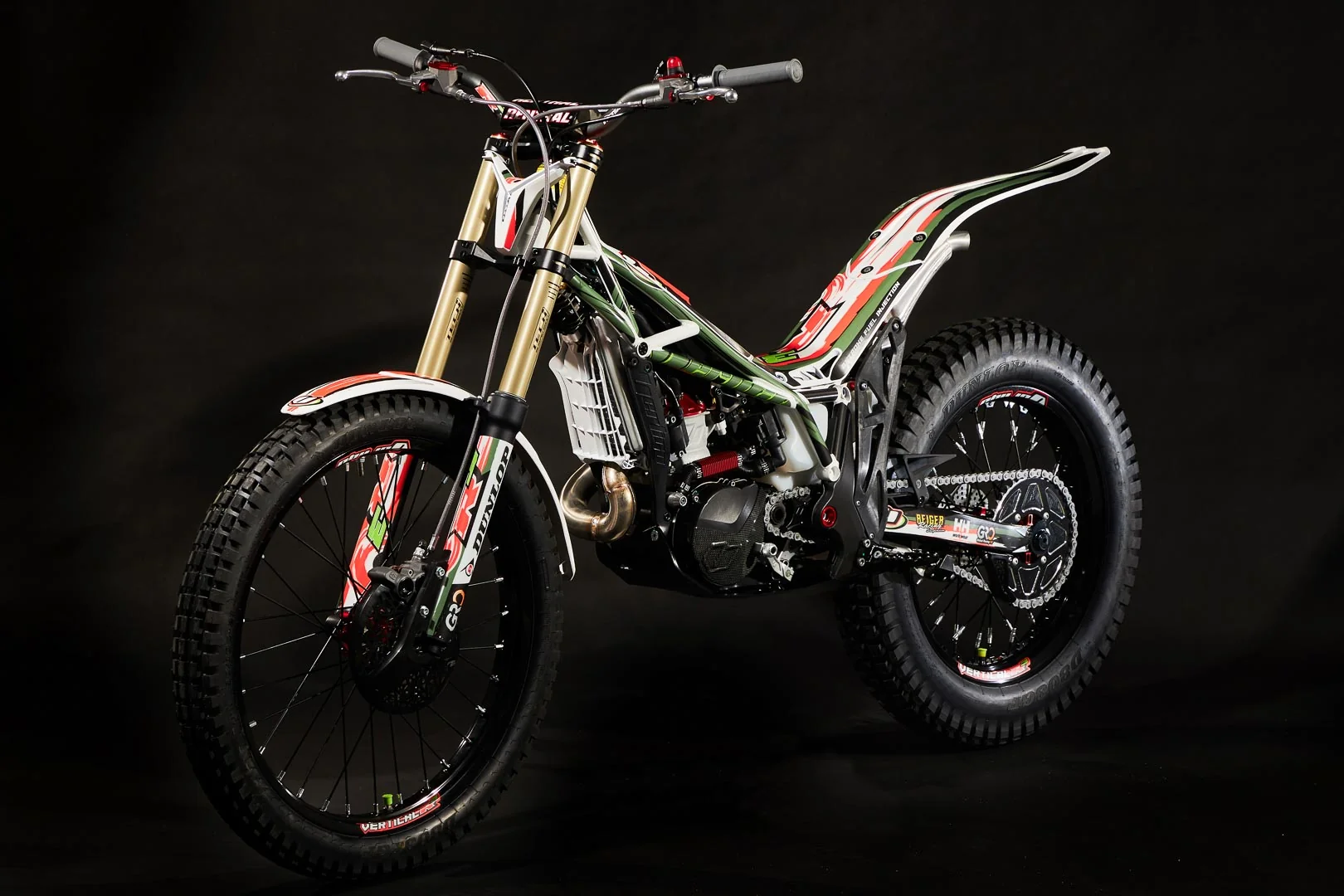

Vertigo Vertical R3 280
Key specifications
Engine
280 cc
Weight
68 kg
Fuel type
petrol
Transmission
6-speed
Seat height
27 mm
Front brakes
Single disc. Braktec 4-piston caliper
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Vertigo
- Model
- Vertical R3 280
- Category
- Trial
- Starter
- Kick
- Color Options
- Green/white/orange
- Clutch
- Multi-disc oil wet adjustable preload
- Gearbox
- 6-speed
- Driveline
- 10z/42
- Fuel System
- Injection
- .
- Atmospheric
- pressure and air temperature sensor
- Bore X Stroke
- 76.0 x 60.0 mm (3.0 x 2.4 inches)
- Displacement
- 280.0 ccm (17.09 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Exhaust System
- Symmetric and centered silencer
- Transmission Type Final Drive
- Chain
- Dry Weight
- 68.0 kg (149.9 pounds)
- Seat Height
- 680 mm (26.8 inches) If adjustable, lowest setting.
- Overall Length
- 2110 mm (83.1 inches)
- Wheels
- Dunlop D803GP tires
- Rear Tyre
- 2.15-18
- Frame Type
- 25CrMo4 steel , aluminium 6082 subframe
- Front Tyre
- 1.60-21
- Rear Brakes
- Single disc
- Front Brakes
- Single disc. Braktec 4-piston caliper
- Rear Suspension
- Swingarm
- combined with
- R
- 2 way monoshock with compression, rebound and spring preload adjustment
- Front Suspension
- Tech Factory
- Rear Wheel Travel
- 170 mm (6.7 inches)
- Front Wheel Travel
- 170 mm (6.7 inches)
Available colors
Green/white/orange
