Back to Bike FinderYears: 2009
2007Scooter

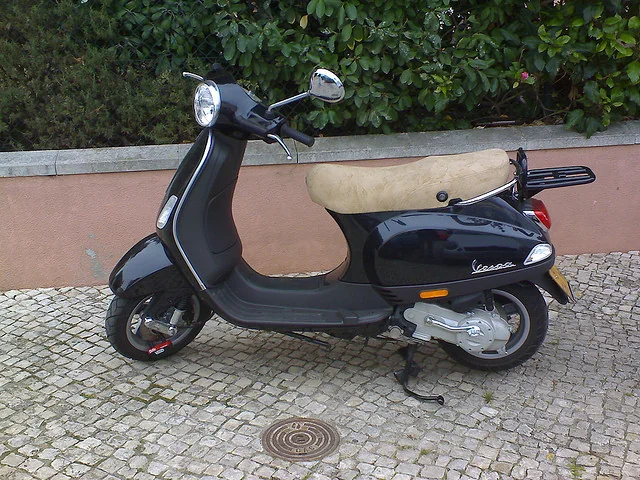

Vespa LX50 4T
Key specifications
Engine
50 cc
Weight
102 kg
Fuel type
petrol
Fuel capacity
2.3 L
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Vespa
- Model
- LX50 4T
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- X504t Blue Sky
- ,
- Excalibur Silver
- ,
- Red Dragon
- ,
- Clutch
- Dry automatic centrifugal type with damping plugs
- Bore X Stroke
- 39.0 x 41.8 mm (1.5 x 1.6 inches)
- Displacement
- 49.90 ccm (3.04 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Dry Weight
- 102.0 kg (224.9 pounds)
- Fuel Capacity
- 8.60 litres (2.27 gallons)
- Overall Length
- 1,755 mm (69.1 inches)
- Rear Tyre
- 120/70-10
- Frame Type
- Steel sheet metal with welded structural reinforcements
- Front Tyre
- 110/70-11
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Coil spring and dual effect single shock absorber
- Front Suspension
- Single-arm with coil spring and dual effect single shock absorber
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 200 mm (7.9 inches)
Available colors
LX504t
Blue SkyExcalibur SilverRed DragonBlack Graphite
