Back to Bike FinderYears: 2009
2009Scooter

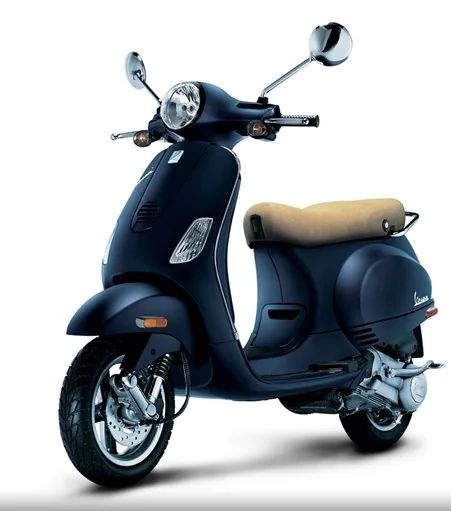

Vespa LXV 50
Key specifications
Engine
49 cc
Power
4 HP
Torque
4 Nm
Weight
102 kg
Fuel type
petrol
Transmission
Automatic
Front brakes
Single disc
Rear brakes
Expanding brake (drum brake)
Technical details
Source specification data
- Make
- Vespa
- Model
- LXV 50
- Category
- Scooter
- Starter
- Electric & kick
- Color Options
- Portofino, Siena
- Power
- 4.15 HP (3.0 kW)) @ 8750 RPM
- Clutch
- Automatic dry centrifuge with damper buffers
- Torque
- 3.50 Nm (0.4 kgf-m or 2.6 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Bore X Stroke
- 39.1 x 41.4 mm (1.5 x 1.6 inches)
- Displacement
- 49.40 ccm (3.01 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, four-stroke
- Lubrication System
- Wet sump,
- Valves Per Cylinder
- 2
- Transmission Type Final Drive
- Belt
- Dry Weight
- 102.0 kg (224.9 pounds)
- Overall Length
- 1,755 mm (69.1 inches)
- Power Weight Ratio
- 0.0407 HP/kg
- Rear Tyre
- 120/70-11
- Frame Type
- Load-bearing steel chassis with welded structural supports
- Front Tyre
- 110/70-11
- Rear Brakes
- Expanding brake (drum brake)
- Front Brakes
- Single disc
- Rear Suspension
- Coil spring and dual effect single shock absorber
- Front Suspension
- Single arm with helical spring and dual effect hydraulic single shock absorber
- Rear Brakes Diameter
- 110 mm (4.3 inches)
- Front Brakes Diameter
- 200 mm (7.9 inches)
Available colors
PortofinoSiena
