Back to Bike FinderYears: 2013 · 2012 · 2011 · 2010 · 2009
2012Cruiser

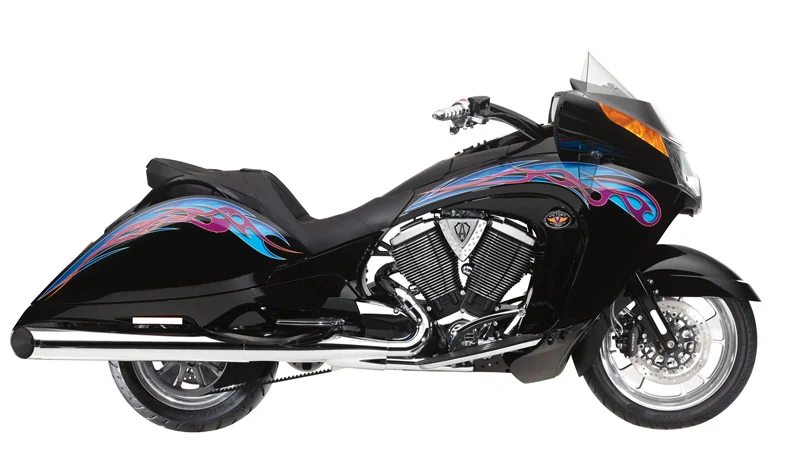

Victory Arlen Ness Vision
$25,799
Key specifications
Engine
1737 cc
Power
97 HP
Torque
153 Nm
Weight
394 kg
Fuel type
petrol
Fuel capacity
6.0 L
Transmission
6-speed
Seat height
25 mm
Front brakes
Double disc. ABS. Floating rotor with 4-piston calipers
Rear brakes
Single disc. ABS. Floating rotor with 2-piston caliper
Technical details
Source specification data
- Make
- Victory
- Model
- Arlen Ness Vision
- Price
- S
- $ 25799.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Touring
- Starter
- Electric
- Comments
- Windshield
- with
- Ness
- custom graphic.
- Kicker Premium Audio Speakers
- .
- Electrical
- 12 volts / 18 amp hours battery.
- Color Options
- Nuclear Sunset w/Ness Graphics
- Power
- 97.00 HP (70.8 kW))
- Clutch
- Wet, Multi-plate
- Torque
- 153.23 Nm (15.6 kgf-m or 113.0 ft.lbs)
- Gearbox
- 6-speed
- Driveline
- Carbon Fiber Reinforced Belt
- .
- Primary
- drive:
- Gear
- drive with torque compensator.
- Engine Type
- V
- -
- Twin
- .
- Self
- -adjusting cam chains, hydraulic lifters.
- Fuel System
- Injection. Dual 45mm throttle body
- Bore X Stroke
- 101.0 x 108.0 mm (4.0 x 4.3 inches)
- Compression
- 9.4:1
- Displacement
- 1737.14 ccm (106.00 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Split dual exhaust with crossover
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 394.2 kg (869.0 pounds)
- Seat Height
- 622 mm (24.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.70 litres (0.31 quarts)
- Fuel Capacity
- 22.71 litres (6.00 gallons)
- Overall Length
- 2,664 mm (104.9 inches)
- Ground Clearance
- 122 mm (4.8 inches)
- Power Weight Ratio
- 0.2461 HP/kg
- Rake
- 29.0°
- Seat
- Leather stitched seat
- Trail
- 142 mm (5.6 inches)
- Wheels
- Hot Rod Ness billet wheels
- Rear Tyre
- 180/60-R16
- Front Tyre
- 130/70-R18
- Rear Brakes
- Single
- disc.
- S
- .
- Floating
- rotor with 2-piston caliper
- Front Brakes
- Double
- disc.
- S
- .
- Floating
- rotor with 4-piston calipers
- Rear Suspension
- Single, mono-tube, cast aluminum with constant-rate linkage, air adjustable
- Front Suspension
- Conventional telescopic fork, 46 mm diameter
- Rear Wheel Travel
- 93 mm (3.6 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Nuclear Sunset w/Ness Graphics
