Back to Bike FinderYears: 2014

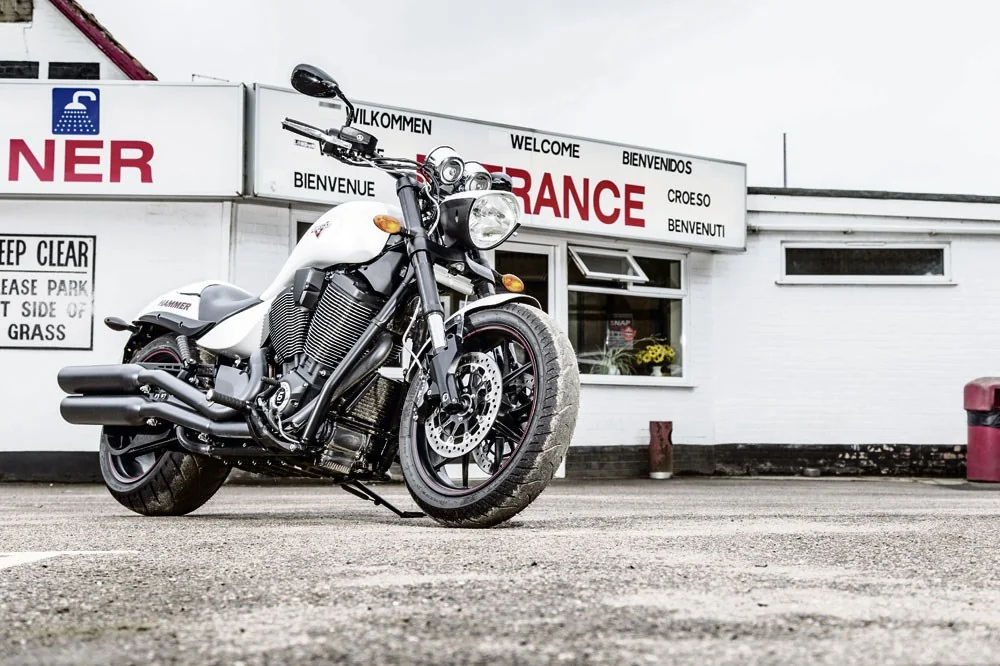

Victory Hammer S LE
2014Cruiser

Victory Hammer S LE

Key specifications

Engine
1731 cc
Torque
140 Nm
Weight
305 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Single disc. ABS. Floating discs. Four-piston calipers.
Rear brakes
Single disc. ABS. Floating disc. Two-piston calipers.

Technical details

Source specification data

Make
Victory
Model
Hammer S LE
Category
Custom-cruiser
Starter
Electric
Comments
Limited edition of 200 bikes.
Electrical
12 volts / 18 amp hours battery.
Color Options
White
Clutch
Wet, Multi-plate
Torque
140.00 Nm (14.3 kgf-m or 103.3 ft.lbs)
Gearbox
6-speed
Driveline
Carbon Fiber Reinforced Belt
.
Primary
drive:
Gear
drive with torque compensator.
Engine Type
Self-adjusting cam chains, hydraulic lifters
Fuel System
Injection
.
Electronic Fuel Injection
with dual 45mm throttle body
Bore X Stroke
101.0 x 108.0 mm (4.0 x 4.3 inches)
Compression
9.4:1
Displacement
1731.00 ccm (105.63 cubic inches)
Cooling System
Oil & air
Engine Details
V2, four-stroke
Exhaust System
Staggered slash-cut dual exhaust with crossover
Valves Per Cylinder
4
Transmission Type Final Drive
Belt
Dry Weight
304.8 kg (672.0 pounds)
Seat Height
660 mm (26.0 inches) If adjustable, lowest setting.
Oil Capacity
4.70 litres (0.31 quarts)
Fuel Capacity
17.03 litres (4.50 gallons)
Overall Length
2,383 mm (93.8 inches)
Ground Clearance
135 mm (5.3 inches)
Rake
33.0°
Trail
140 mm (5.5 inches)
Rear Tyre
250/40-R18
Front Tyre
130/70-R18
Rear Brakes
Single
disc.
S
.
Floating
disc.
Two
-piston calipers.
Front Brakes
Single
disc.
S
.
Floating
discs.
Four
-piston calipers.
Rear Suspension
Single, mono-tube gas, cast aluminum with rising rate linkage
Front Suspension
Inverted cartridge telescopic Fork
Rear Brakes Diameter
300 mm (11.8 inches)
Front Brakes Diameter
300 mm (11.8 inches)

Available colors

White
