Back to Bike FinderYears: 2013
2013Cruiser

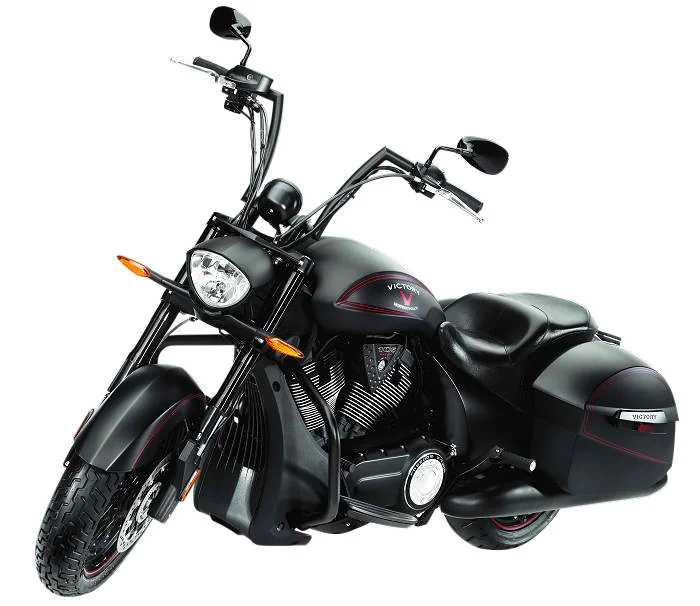

Victory Hard-Ball
$18,999
Key specifications
Engine
1737 cc
Weight
344 kg
Fuel type
petrol
Fuel capacity
5.8 L
Transmission
6-speed
Seat height
26 mm
Front brakes
Double disc. Floating rotor with 4-piston calipers. ABS
Rear brakes
Single disc. Floating rotor with 2-piston caliper. ABS
Technical details
Source specification data
- Make
- Victory
- Model
- Hard-Ball
- Price
- S
- $ 18999.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Custom-cruiser
- Starter
- Electric
- Electrical
- 12 volts / 18 amp hours battery.
- Color Options
- Matte Black with Red Pinstriping
- Carrying Capacity
- Saddle bags.
- Clutch
- Wet, Multi-plate
- Gearbox
- 6-speed
- Driveline
- Carbon Fiber Reinforced Belt
- .
- Primary
- drive:
- Gear
- drive with torque compensator.
- Engine Type
- Self-adjusting cam chains, hydraulic lifters
- Fuel System
- Injection
- .
- Electronic Fuel Injection
- with dual 45mm throttle body
- Bore X Stroke
- 101.0 x 108.0 mm (4.0 x 4.3 inches)
- Compression
- 9.4:1
- Displacement
- 1737.14 ccm (106.00 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Split dual exhaust with crossover
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 343.8 kg (758.0 pounds)
- Seat Height
- 667 mm (26.3 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.70 litres (0.31 quarts)
- Fuel Capacity
- 21.95 litres (5.80 gallons)
- Overall Length
- 2,652 mm (104.4 inches)
- Ground Clearance
- 147 mm (5.8 inches)
- Rake
- 29.0°
- Trail
- 142 mm (5.6 inches)
- Wheels
- Black Spoked
- .
- Dunlop
- 491
- I
- with
- Red Tire Strip
- tyres.
- Rear Tyre
- 180/60-R16
- Front Tyre
- 130/70-B18
- Rear Brakes
- Single
- disc.
- Floating
- rotor with 2-piston caliper.
- Front Brakes
- Double
- disc.
- Floating
- rotor with 4-piston calipers.
- Rear Suspension
- Single
- , mono-tube gas,
- Cast
- aluminum with constant rate linkage, 4.7 in/ 120mm travel,
- Air
- adjustable
- Front Suspension
- Inverted cartridge telescopic fork, 5.1 in/ 130 mm travel
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Matte Black with Red Pinstriping
