Back to Bike FinderYears: 2009
2009Cruiser

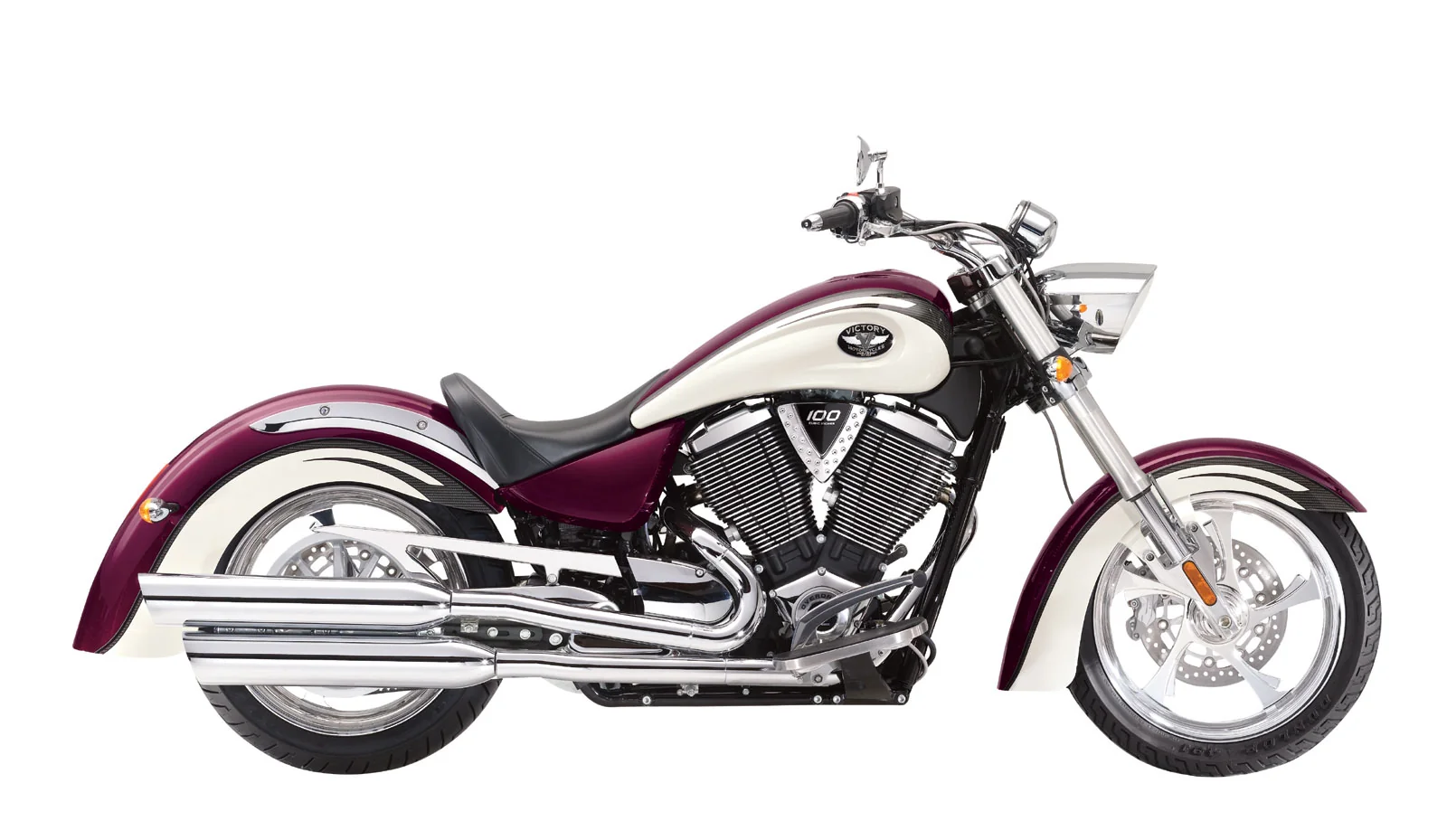

Victory Kingpin Low
$16,399
Key specifications
Engine
1639 cc
Weight
307 kg
Fuel type
petrol
Fuel capacity
4.5 L
Transmission
6-speed
Seat height
25 mm
Front brakes
Single disc. 4-piston calipers
Rear brakes
Single disc. 2-piston calipers
Technical details
Source specification data
- Make
- Victory
- Model
- Kingpin Low
- Price
- S
- $ 16399.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Custom-cruiser
- Starter
- Electric
- Color Options
- Solid Black
- ,
- Solid Midnight Cherry
- ,
- Gearbox
- 6-speed
- Fuel System
- Injection. 45mm throttle bodies
- Bore X Stroke
- 101.0 x 102.0 mm (4.0 x 4.0 inches)
- Compression
- 8.7:1
- Displacement
- 1638.81 ccm (100.00 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Exhaust System
- Staggered slash-cut dual exhaust with crossover
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 306.6 kg (676.0 pounds)
- Seat Height
- 640 mm (25.2 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.70 litres (0.31 quarts)
- Fuel Capacity
- 17.03 litres (4.50 gallons)
- Overall Length
- 2,537 mm (99.9 inches)
- Ground Clearance
- 138 mm (5.4 inches)
- Rake
- 32.8°
- Trail
- 138 mm (5.4 inches)
- Rear Tyre
- 180/55-B18
- Front Tyre
- 130/70-B18
- Rear Brakes
- Single disc. 2-piston calipers
- Front Brakes
- Single disc. 4-piston calipers
- Rear Suspension
- Single, mono-tube gas, cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring
- Front Suspension
- Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Solid BlackSolid Midnight CherrySolid Supersteel Gray
