Back to Bike FinderYears: 2011 · 2010
2010Cruiser

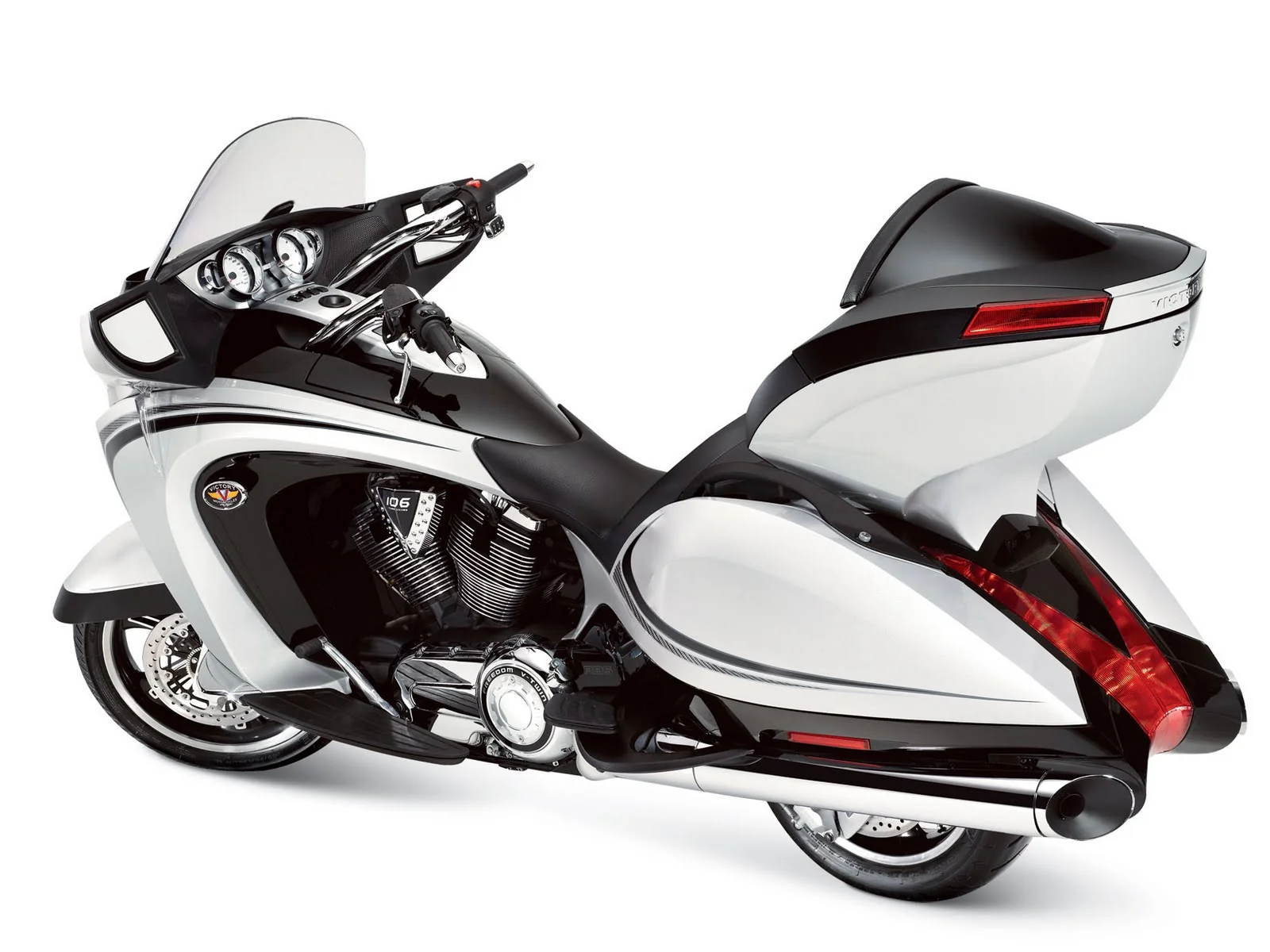

Victory Vision 8 Ball
Key specifications
Engine
1731 cc
Weight
364 kg
Fuel type
petrol
Fuel capacity
6.0 L
Transmission
6-speed
Seat height
25 mm
Front brakes
Double disc. 3-piston caliper
Rear brakes
Single disc. 2-piston caliper
Technical details
Source specification data
- Make
- Victory
- Model
- Vision 8 Ball
- Category
- Touring
- Starter
- Electric
- Color Options
- Solid Black
- Gearbox
- 6-speed
- Fuel System
- Injection
- Bore X Stroke
- 101.0 x 108.0 mm (4.0 x 4.3 inches)
- Compression
- 9.4:1
- Displacement
- 1731.00 ccm (105.63 cubic inches)
- Cooling System
- Oil & air
- Engine Details
- V2, four-stroke
- Exhaust System
- Split dual exhaust with crossover
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Dry Weight
- 364.0 kg (802.5 pounds)
- Seat Height
- 622 mm (24.5 inches) If adjustable, lowest setting.
- Oil Capacity
- 4.70 litres (0.31 quarts)
- Fuel Capacity
- 22.71 litres (6.00 gallons)
- Overall Length
- 26,296 mm (1,035.3 inches)
- Ground Clearance
- 122 mm (4.8 inches)
- Reserve Fuel Capacity
- 3.78 litres (1.00 gallons)
- Rake
- 29.0°
- Trail
- 137 mm (5.4 inches)
- Rear Tyre
- 180/60-16
- Front Tyre
- 130/70-18
- Rear Brakes
- Single disc. 2-piston caliper
- Front Brakes
- Double disc. 3-piston caliper
- Rear Suspension
- Single, mono-tube gas,cast aluminum with rising rate linkage
- Front Suspension
- Conventional telescopic fork
- Rear Wheel Travel
- 93 mm (3.6 inches)
- Front Wheel Travel
- 130 mm (5.1 inches)
- Rear Brakes Diameter
- 300 mm (11.8 inches)
- Front Brakes Diameter
- 300 mm (11.8 inches)
Available colors
Solid Black
