2007Super Moto

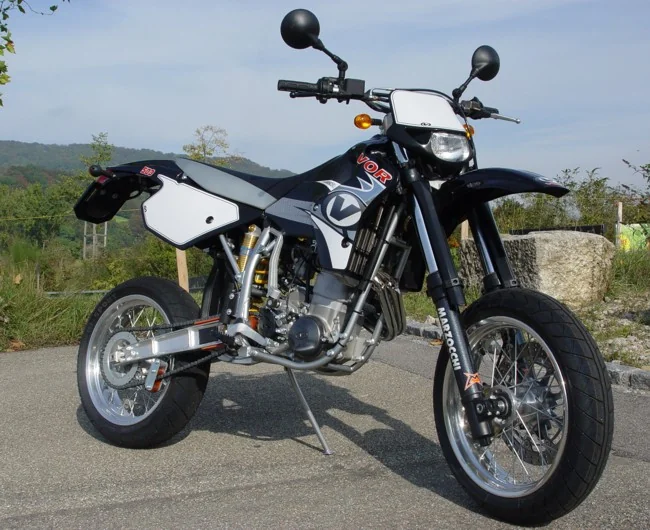

VOR SM-E 530 Supermotard
Key specifications
Engine
525 cc
Weight
122 kg
Fuel type
petrol
Fuel capacity
2.4 L
Transmission
5-speed
Seat height
35 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- VOR
- Model
- SM-E 530 Supermotard
- Category
- Super motard
- Starter
- Electric & kick
- Gearbox
- 5-speed
- Ignition
- Digital electronic oil bath
- Fuel System
- Carburettor. Keihin FCR 39
- Bore X Stroke
- 97.0 x 71.0 mm (3.8 x 2.8 inches)
- Compression
- 11.5:1
- Displacement
- 524.67 ccm (32.02 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, four-stroke
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Chain
- Dry Weight
- 122.0 kg (269.0 pounds)
- Seat Height
- 898 mm (35.4 inches) If adjustable, lowest setting.
- Fuel Capacity
- 9.00 litres (2.38 gallons)
- Overall Length
- 2,100 mm (82.7 inches)
- Ground Clearance
- 300 mm (11.8 inches)
- Weight Incl Oil Gas Etc
- 133.0 kg (293.2 pounds)
- Rear Tyre
- 150/60-17
- Frame Type
- Perimetral
- frame,
- Mo
- ,
- Oval
- cross-section spars, aluminium rear frame
- Front Tyre
- 120/70-17
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Single progressive hydraulic Öhlins shock absorber, low-high speed adjustable preload extension and compression
- Front Suspension
- Reversed Paioli-Kayaba fork, Ø 46 mm,
- Rear Wheel Travel
- 275 mm (10.8 inches)
- Front Wheel Travel
- 265 mm (10.4 inches)
- Rear Brakes Diameter
- 220 mm (8.7 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
