2009Naked

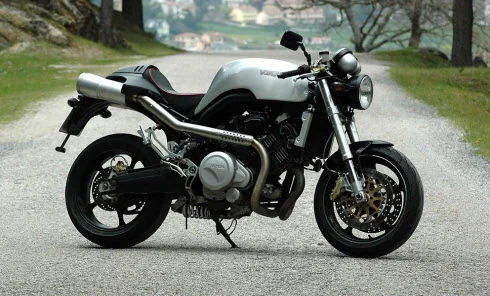

Voxan Black Magic
Key specifications
Engine
996 cc
Power
100 HP
Torque
97 Nm
Weight
185 kg
Fuel type
petrol
Fuel capacity
5.0 L
Transmission
6-speed
Seat height
32 mm
Front brakes
Double disc. Bremo, 4-piston caliper
Rear brakes
Single disc. Bremo, 2-piston caliper
Technical details
Source specification data
- Make
- Voxan
- Model
- Black Magic
- Category
- Naked bike
- Color Options
- Silver
- Power
- 100.00 HP (73.0 kW)) @ 8000 RPM
- Torque
- 97.00 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 6500 RPM
- Gearbox
- 6-speed
- Fuel System
- Injection. MSPFI
- Bore X Stroke
- 98.0 x 66.0 mm (3.9 x 2.6 inches)
- Compression
- 10.5:1
- Displacement
- 996.00 ccm (60.78 cubic inches)
- Cooling System
- Liquid
- Engine Details
- V2, four-stroke
- Valves Per Cylinder
- 4
- Dry Weight
- 185.0 kg (407.9 pounds)
- Seat Height
- 820 mm (32.3 inches) If adjustable, lowest setting.
- Oil Capacity
- 3.80 litres (0.25 quarts)
- Fuel Capacity
- 19.00 litres (5.02 gallons)
- Overall Length
- 2,100 mm (82.7 inches)
- Ground Clearance
- 159 mm (6.3 inches)
- Power Weight Ratio
- 0.5405 HP/kg
- Rake
- 24.7°
- Rear Tyre
- 180/55-ZR17
- Frame Type
- Double tubular
- Front Tyre
- 120/70-ZR17
- Rear Brakes
- Single disc. Bremo, 2-piston caliper
- Front Brakes
- Double disc. Bremo, 4-piston caliper
- Front Suspension
- Inverted fork, 43 mm
- Rear Wheel Travel
- 120 mm (4.7 inches)
- Front Wheel Travel
- 120 mm (4.7 inches)
- Rear Brakes Diameter
- 245 mm (9.6 inches)
- Front Brakes Diameter
- 320 mm (12.6 inches)
Available colors
Silver
