Back to Bike FinderYears: 1983
1983Classic

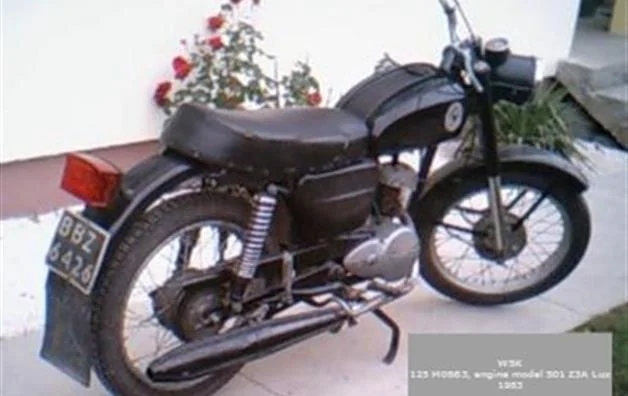

WSK 125 M06B3, engine model S01 Z3A Lux
Key specifications
Engine
125 cc
Power
8 HP
Torque
10 Nm
Weight
98 kg
Fuel type
petrol
Fuel capacity
3.3 L
Transmission
3-speed
Seat height
30 mm
Front brakes
Expanding brake (drum brake). Full hub drum brake
Rear brakes
Expanding brake (drum brake). Full hub drum brake
Technical details
Source specification data
- Make
- WSK
- Model
- 125 M06B3, engine model S01 Z3A Lux
- Category
- Classic
- Starter
- Kick
- Color Options
- Black
- ,
- Green
- ,
- Orange
- ,
- Red
- ,
- Yellow
- ,
- Blue
- or two-collored ex.: red-white
- Power
- 8.00 HP (5.8 kW)) @ 5300 RPM
- Clutch
- Wet three plate
- Max Rpm
- 5400
- Torque
- 9.80 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 4200 RPM
- Gearbox
- 3-speed
- Ignition
- Magneto - no baterry required, self powered
- Top Speed
- 85.0 km/h (52.8 mph)
- Fuel System
- Carburettor. G20 M2A 20 mm
- Bore X Stroke
- 52.0 x 58.0 mm (2.0 x 2.3 inches)
- Compression
- 7.8:1
- Displacement
- 125.00 ccm (7.63 cubic inches)
- Cooling System
- Air
- Engine Details
- Single cylinder, two-stroke
- Exhaust System
- Single stainless steel pipe, or economy painted exhoust end pipe
- Fuel Consumption
- 2.80 litres/100 km (35.7 km/l or 84.01 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Lubrication System
- Oil
- and petrol mixture 1:30, spark plug
- Bosch
- ´225
- Transmission Type Final Drive
- Chain
- Dry Weight
- 98.0 kg (216.1 pounds)
- Seat Height
- 766 mm (30.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.50 litres (3.30 gallons)
- Overall Width
- 840 mm (33.1 inches)
- Overall Height
- 1,000 mm (39.4 inches)
- Overall Length
- 2,020 mm (79.5 inches)
- Ground Clearance
- 160 mm (6.3 inches)
- Power Weight Ratio
- 0.0816 HP/kg
- Reserve Fuel Capacity
- 3.00 litres (0.79 gallons)
- Weight Incl Oil Gas Etc
- 114.0 kg (251.3 pounds)
- Rear Percentage Of Weight
- 55
- Front Percentage Of Weight
- 45
- Frame Type
- Single steel craddle (pre 1971 double steel craddle
- Rear Brakes
- Expanding
- brake (drum brake).
- Full
- hub drum brake
- Front Brakes
- Expanding
- brake (drum brake).
- Full
- hub drum brake
- Rear Suspension
- Dragged swinging arm
- Front Suspension
- Forks
- Rear Wheel Travel
- 60 mm (2.4 inches)
- Front Wheel Travel
- 150 mm (5.9 inches)
- Rear Brakes Diameter
- 140 mm (5.5 inches)
- Front Brakes Diameter
- 140 mm (5.5 inches)
Available colors
BlackGreenOrangeRedYellowBlue or two-collored ex.: red-white
