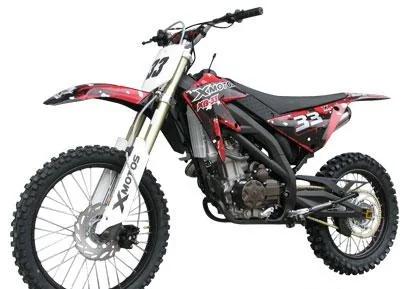

Xmotos XTR 125
2010Off-road

Xmotos XTR 125

Key specifications

Engine
120 cc
Power
9 HP
Weight
79 kg
Fuel type
petrol
Fuel capacity
0.9 L
Transmission
4-speed
Front brakes
Single disc
Rear brakes
Single disc

Technical details

Source specification data

Make
Xmotos
Model
XTR 125
Category
Enduro-offroad
Starter
Electric
Color Options
White, Orange, Red, Black
Power
8.72 HP (6.4 kW)) @ 7500 RPM
Clutch
Final drive
Gearbox
4-speed
Ignition
CDI
Fuel System
Carburettor
Bore X Stroke
52.4 x 55.5 mm (2.1 x 2.2 inches)
Compression
9.0:1
Displacement
119.70 ccm (7.30 cubic inches)
Cooling System
Air
Engine Details
Single cylinder, four-stroke
Transmission Type Final Drive
Chain
Dry Weight
79.0 kg (174.2 pounds)
Fuel Capacity
3.50 litres (0.92 gallons)
Overall Width
750 mm (29.5 inches)
Overall Height
1,020 mm (40.2 inches)
Overall Length
170 mm (6.7 inches)
Power Weight Ratio
0.1104 HP/kg
Rear Tyre
60/100-12
Front Tyre
60/100-14
Rear Brakes
Single disc
Front Brakes
Single disc
Rear Suspension
Hydraulic and damping shock absorber
Front Suspension
Inverted and hydraulic fork
Rear Brakes Diameter
190 mm (7.5 inches)
Front Brakes Diameter
200 mm (7.9 inches)

Available colors

WhiteOrangeRedBlack
