Back to Bike FinderYears: 2014 · 2013
2013Scooter

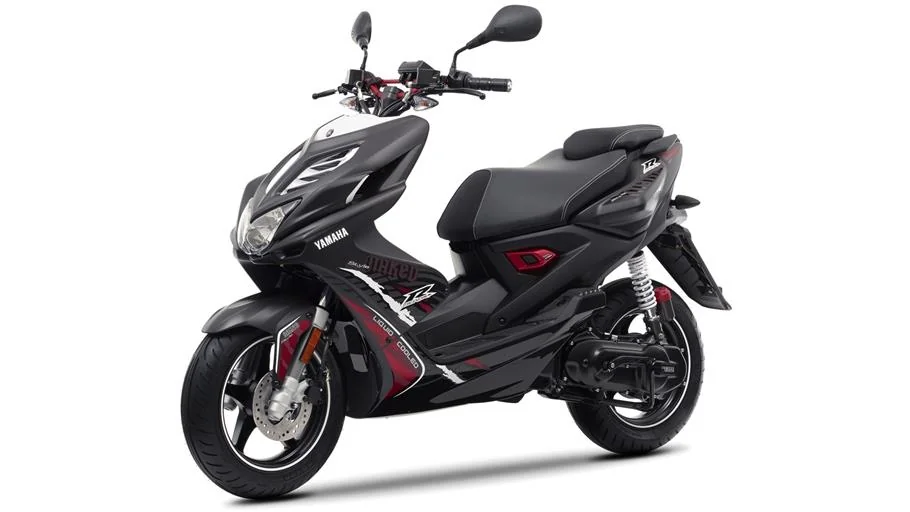

Yamaha Aerox R Naked 50
Key specifications
Engine
49 cc
Power
3 HP
Torque
4 Nm
Fuel type
petrol
Fuel capacity
1.9 L
Transmission
Automatic
Seat height
32 mm
Front brakes
Single disc. Hydraulic
Rear brakes
Single disc. Hydraulic
Technical details
Source specification data
- Make
- Yamaha
- Model
- Aerox R Naked 50
- Category
- Scooter
- Starter
- Electric & kick
- Instruments
- High-spec LCD instruments
- Color Options
- Black/Yellow
- Carrying Capacity
- Under-seat helmet storage for a full-face helmet.
- Modifications Compared To Previous Model
- New dual seat with sports riding position.
- Power
- 3.26 HP (2.4 kW)) @ 6750 RPM
- Torque
- 3.53 Nm (0.4 kgf-m or 2.6 ft.lbs) @ 6500 RPM
- Gearbox
- Automatic
- Ignition
- CDI
- Driveline
- V-Belt Automatic
- Fuel System
- Carburettor. Gurtner
- Bore X Stroke
- 40.0 x 39.2 mm (1.6 x 1.5 inches)
- Compression
- 12.0:1
- Displacement
- 49.20 ccm (3.00 cubic inches)
- Cooling System
- Liquid
- Engine Details
- Single cylinder, two-stroke
- Lubrication System
- Separate lubrication
- Transmission Type Final Drive
- Belt
- Seat Height
- 815 mm (32.1 inches) If adjustable, lowest setting.
- Fuel Capacity
- 7.00 litres (1.85 gallons)
- Overall Width
- 725 mm (28.5 inches)
- Overall Height
- 1,155 mm (45.5 inches)
- Overall Length
- 1,875 mm (73.8 inches)
- Ground Clearance
- 185 mm (7.3 inches)
- Weight Incl Oil Gas Etc
- 97.0 kg (213.8 pounds)
- Wheels
- Black, five spoke
- Rear Tyre
- 140/60-13
- Frame Type
- Steel
- Front Tyre
- 130/60-13
- Rear Brakes
- Single disc. Hydraulic
- Front Brakes
- Single disc. Hydraulic
- Rear Suspension
- UNit swing
- Front Suspension
- Telescopic fork
- Rear Wheel Travel
- 60 mm (2.4 inches)
- Front Wheel Travel
- 80 mm (3.1 inches)
- Rear Brakes Diameter
- 190 mm (7.5 inches)
- Front Brakes Diameter
- 190 mm (7.5 inches)
Available colors
Black/Yellow
