2017Cruiser

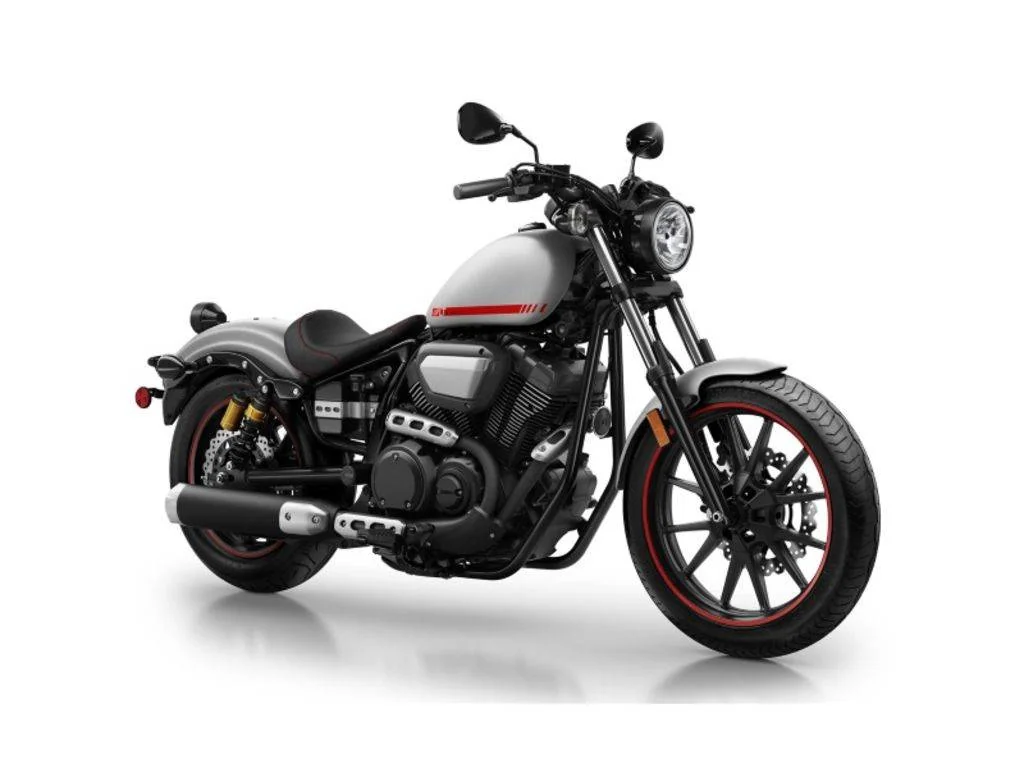

Yamaha Bolt
$7,999
Key specifications
Engine
951 cc
Fuel type
petrol
Fuel capacity
3.2 L
Transmission
5-speed
Seat height
27 mm
Front brakes
Single disc
Rear brakes
Single disc
Technical details
Source specification data
- Make
- Yamaha
- Model
- Bolt
- Price
- S
- $ 7999.
- Prices
- depend on country, taxes, accessories, etc.
- Category
- Custom-cruiser
- Starter
- Electric
- Comments
- Model also called 2017 Star Bolt.
- Color Options
- Raven black
- Factory Warranty
- 1 Year Limited
- Modifications Compared To Previous Model
- Flangeless
- fuel tank design.
- Wire
- -spoked aluminum rims.
- Gearbox
- 5-speed
- Ignition
- TCI (Transistor Controlled Ignition)
- Fuel System
- Injection
- .
- Twin
- -
- Bore
- electronic fuel injection; throttle position sensor
- Bore X Stroke
- 85.0 x 83.0 mm (3.3 x 3.3 inches)
- Compression
- 9.0:1
- Displacement
- 950.51 ccm (58.00 cubic inches)
- Cooling System
- Air
- Engine Details
- V2, four-stroke
- Fuel Consumption
- 4.61 litres/100 km (21.7 km/l or 51.02 mpg)
- Greenhouse Gases
- O2
- g/km. (
- O2
- -
- Carbon
- dioxide emission)
- Valves Per Cylinder
- 4
- Transmission Type Final Drive
- Belt
- Seat Height
- 691 mm (27.2 inches) If adjustable, lowest setting.
- Fuel Capacity
- 12.11 litres (3.20 gallons)
- Overall Width
- 945 mm (37.2 inches)
- Overall Height
- 1,120 mm (44.1 inches)
- Overall Length
- 2,291 mm (90.2 inches)
- Ground Clearance
- 130 mm (5.1 inches)
- Weight Incl Oil Gas Etc
- 244.9 kg (540.0 pounds)
- Wheels
- Wire spoked
- Rear Tyre
- 150/80-M16
- Frame Type
- Aluminum double-cradle
- Front Tyre
- 100/90-M19
- Rear Brakes
- Single disc
- Front Brakes
- Single disc
- Rear Suspension
- Dual shocks, 2.8-in travel
- Front Suspension
- Telescopic fork, 4.7-in travel
- Rear Brakes Diameter
- 298 mm (11.7 inches)
- Front Brakes Diameter
- 298 mm (11.7 inches)
Available colors
Raven black
